  6. FM mechanical seal

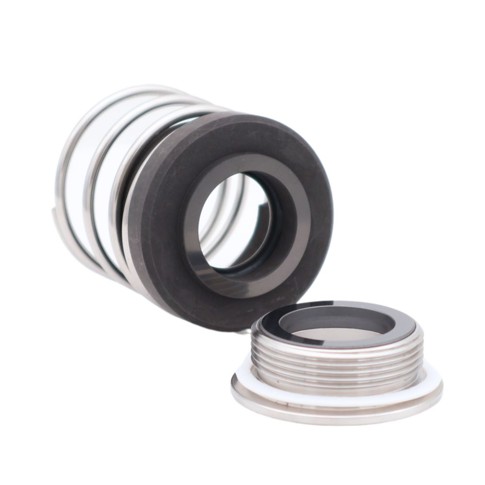

FM akseltætning.png zoom-icon

FM mechanical seal

Application:

Mechanical seal for Alfa-Laval FM pumps 0-3.

Construction:

  • The shaft seal is an open seal type
  • Provided with an O-ring that acts as secondary sealing around the shaft
  • Is not directional
  • The compression spring is open



Download productsheet

Technical specifications

Quality:

  • Spring in stainless steel
  • Rubber bellow in either nitrile, EPDM, or Viton
  • The slide ring is in carbon or silicon
  • The seat is made of silicon
Product number Shaft dia.
mm 		Rotating part
material 		Stationary part
material 		Elastomer
type 		Pump
type 		Base unit
0340439201
22,0
Kul
Sic
NBR
FM 0-3
PCS
0340439203
22,0
Kul
Sic
EPDM
FM 0-3
PCS
0340439204
22,0
Kul
Sic
Viton
FM 0-3
PCS
0340439205
22,0
Sic
Sic
NBR
FM 0-3
PCS
0340439207
22,0
Sic
Sic
EPDM
FM 0-3
PCS
0340439208
22,0
Sic
Sic
Viton
FM 0-3
PCS

Other customers also viewed

ALC akseltætning.png
ALC mechanical seal   >>
FM akseltætning med vandskyl.png
FM mechanical seal with water flush   >>
GM 1-2 akseltætning.png
GM 1-2 mechanical seal   >>

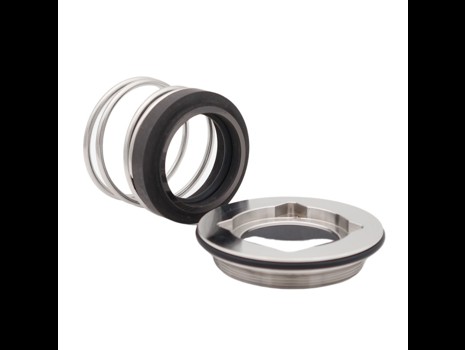

LKH akseltætning.png
