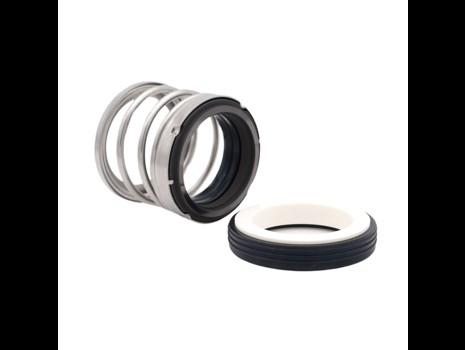

Type 212 mechanical seal
Type 212 mechanical seal
BT mechanical seal
BT mechanical seal

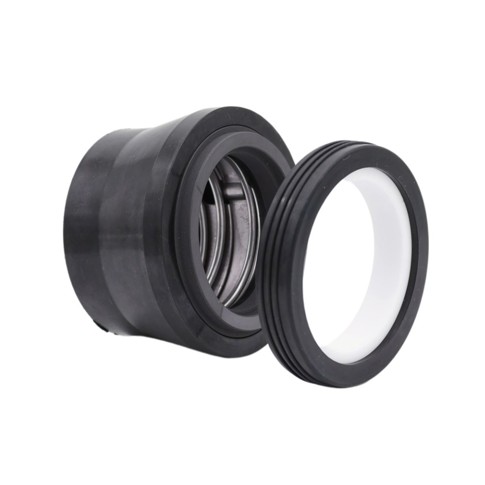

HCL mechanical seal

Application:

HCL mechanical seal for e.g. pipeworks.
Can be mounted in e.g.  APV, Alfa Laval - RCN-3A, RCN-4, LKR 5 and 4512.

Construction:

  • The shaft seal is a bellow seal type
  • Provided with a rubber sleeve that acts as a secondary sealing around the shaft
  • Is not directional
  • The compression spring is encapsulated in a rubber bellow
Download data sheet
Item number Shaft dia.
mm		 Rotating part
material		 Stationary part
material		 Elastomer
type		 Base unit Quantity
035151253N 12,0 Kul Cer NBR PCS
035152053E 20,0 Kul Cer EPDM PCS
035152053N 20,0 Kul Cer NBR PCS
035152053V 20,0 Kul Cer VITON PCS
035152055E 20,0 Kul Sic EPDM PCS
035152553E 25,0 Kul Cer EPDM PCS
035152553N 25,0 Kul Cer NBR PCS
035152555E 25,0 Kul Sic EPDM PCS
035153053E 30,0 Kul Cer EPDM PCS
035153053N 30,0 Kul Cer NBR PCS
035153055E 30,0 Kul Sic EPDM PCS
035153543E 35,0 Kul Cer EPDM PCS
035153553E 35,0 Kul Cer EPDM PCS
035153553N 35,0 Kul Cer NBR PCS
035153555E 35,0 Kul Sic EPDM PCS
035153555N 35,0 Kul Sic NBR PCS
035153557E 35,0 Sic Sic EPDM PCS
035153557N 35,0 Sic Sic NBR PCS
035154053E 40,0 Kul Cer EPDM PCS
035154053N 40,0 Kul Cer NBR PCS
035154055E 40,0 Kul Sic EPDM PCS
035154553E 45,0 Kul Cer EPDM PCS
035154553N 45,0 Kul Cer NBR PCS
035155053E 50,0 Kul Cer EPDM PCS
035155053N 50,0 Kul Cer NBR PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
