BT mechanical seal

Application:

Mechanical seal with short working length for limited spaces.

Construction:

• Very compact mechanical seal with rubber bellow
• Provided with a rubber sleeve that acts as a secondary sealing around the shaft
• Is not directional
• The compression spring is closed

Quality:

• Spring in stainless steel
• Rubber bellow in either nitrile or EPDM rubber
• The slide ring is in carbon or silicon
• The seat is made of ceramic or silicon

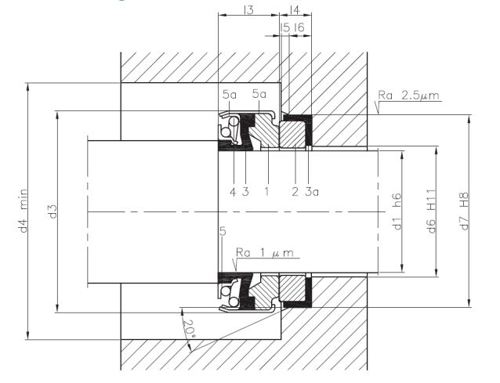

Components:

1. Rotating contact surface
2. Stationary contact surface
3. Bellows
3a. Elastomeric cup
4. Spring
5. Ring
5a. Blocking ring
5b. Metal frame
