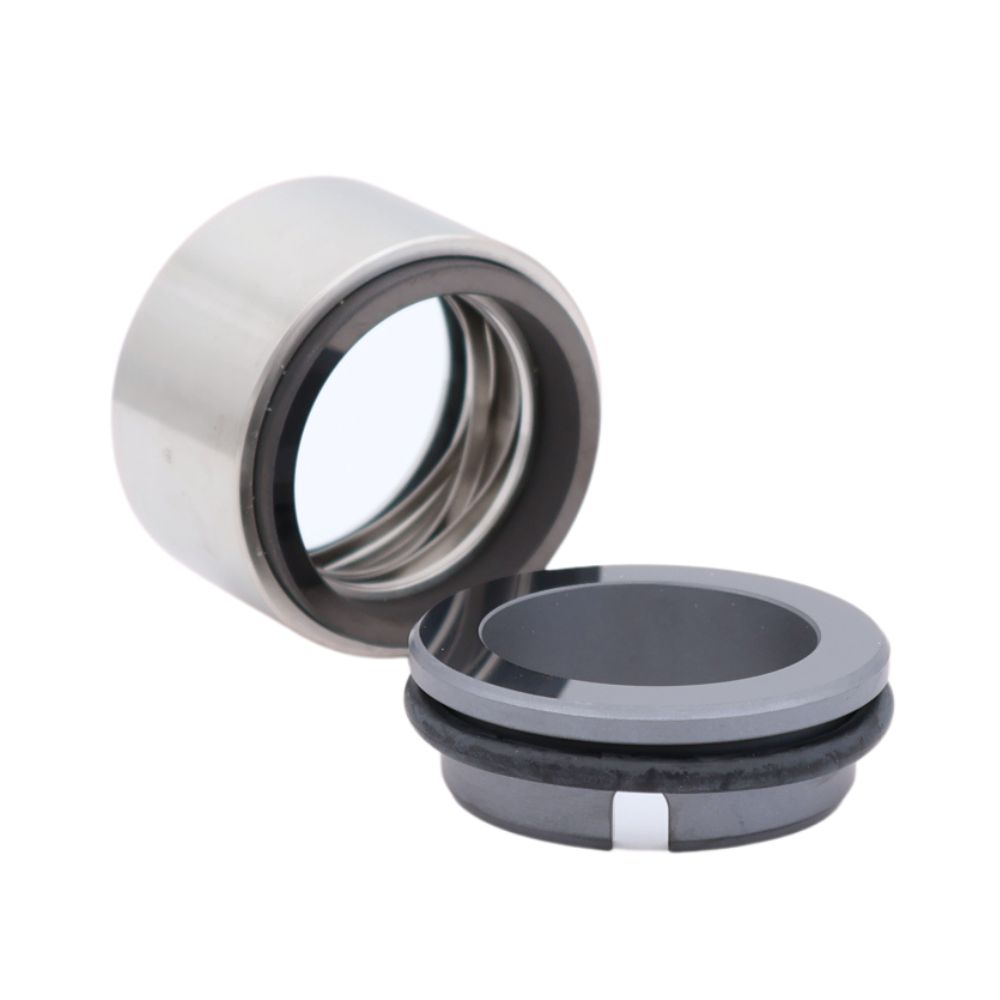

TNHG mechanical seal

Application:

Strong construction suitable for dairy products and juices.

Construction:

  • Spring protected by stainless housing
  • Mounted with O-ring that acts as secondary seal around the shaft
  • Is not directional
  • Combined with O-ring seats
Download data sheet
Item number Base unit Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Pump
type
Quantity
0343TNHG255E PCS 25,0 Car Sic EPDM TP 1020 / TP 2030 / TP 1540 / TP 2050 / TP 3050 / TPS 2030 / TP 3050
0343TNHG255V PCS 25,0 Car Sic Viton TP 1020 / TP 2030 / TP 1540 / TP 2050 / TP 3050 / TPS 2030 / TP 3050
0343TNHG257E PCS 25,0 Sic Sic EPDM TP 1020 / TP 2030 / TP 1540 / TP 2050 / TP 3050 / TPS 2030 / TP 3050
0343TNHG257V PCS 25,0 Sic Sic Viton TP 1020 / TP 2030 / TP 1540 / TP 2050 / TP 3050 / TPS 2030 / TP 3050
0343TNHG305E PCS 30,0 Car Sic EPDM TP 5060 / TP 7060 / TP 2575 / TP8050 / TP 8080 / TP 16040 / TPS 8050 / TPS 8080
0343TNHG307E PCS 30,0 Sic Sic EPDM TP 5060 / TP 7060 / TP 2575 / TP8050 / TP 8080 / TP 16040 / TPS 8050 / TPS 8080
0343TNHG307V PCS 30,0 Sic Sic Viton TP 5060 / TP 7060 / TP 2575 / TP8050 / TP 8080 / TP 16040 / TPS 8050 / TPS 8080
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
