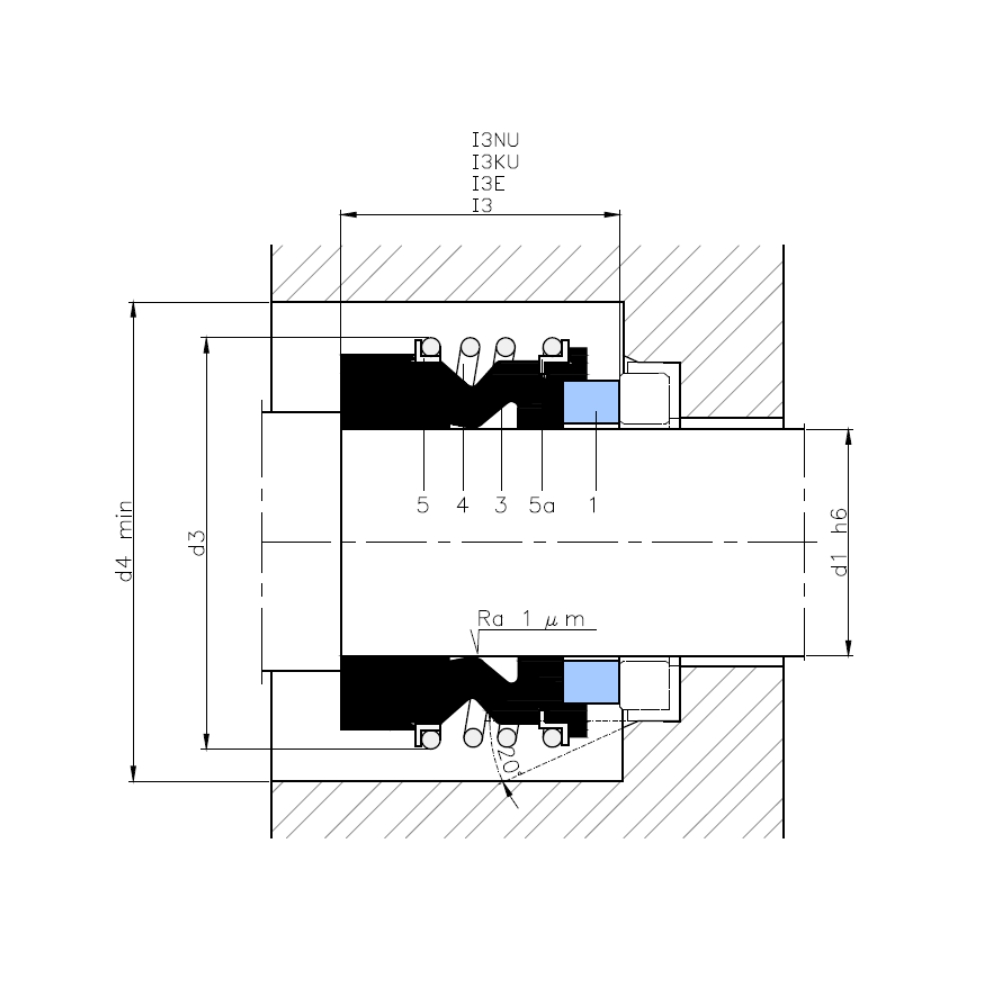

MG 1 mechanical seal

Application:

Robust rubber bellow seal with many seat combinations for maximum flexibility and service life.

Construction:

  • Shaft seal with encapsulated spring
  • Rubber bellow acting as secondary seal around the shaft
  • Can be combined with O-ring or block seats
  • Directional

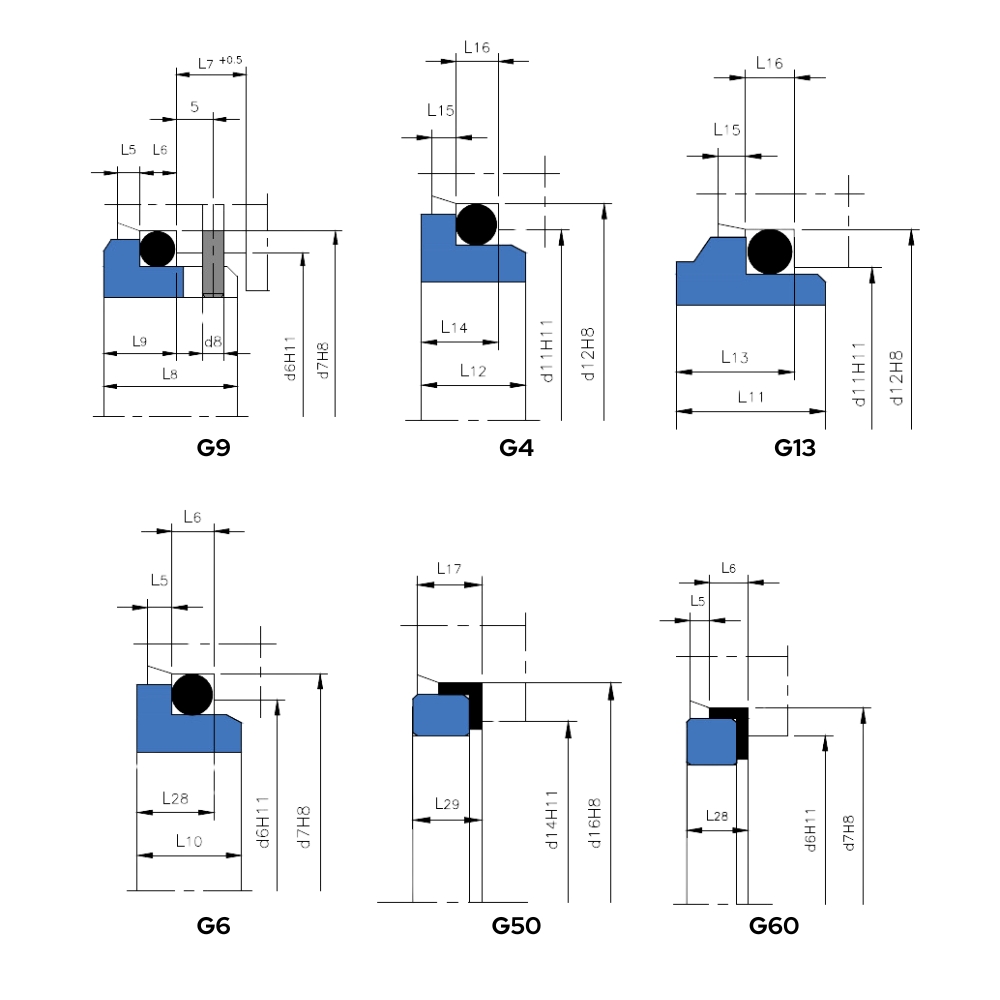

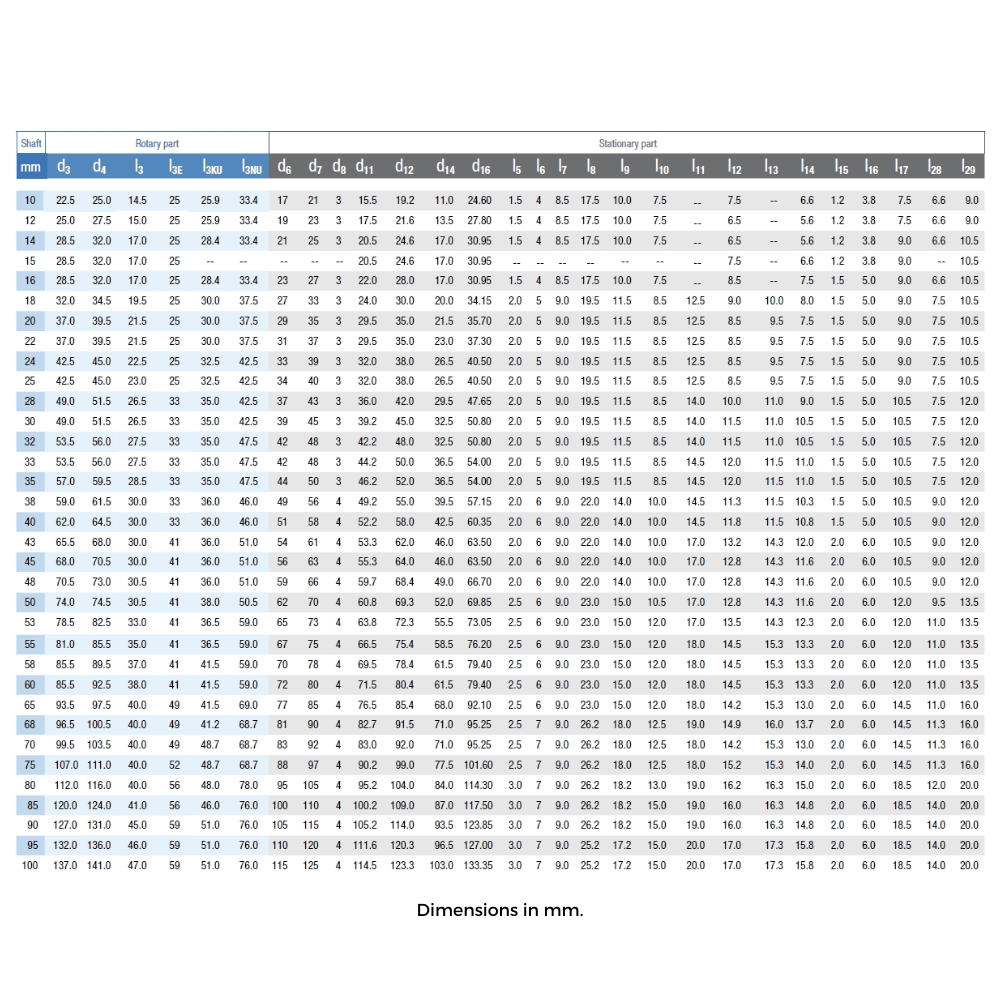

Technical specifications

Quality:

  • Spring in stainless steel
  • Rubber bellow in NBR, EPDM or Viton rubber
  • Seal ring in carbon or silicon
  • The seat is made of ceramic or silicon
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Stationary
type
Base unit
03MG0110065E
10,0
Kul
Sic
EPDM
G6
PCS
03MG0112045N
12,0
Kul
Sic
NBR
G4
PCS
03MG0112605E
12,0
Kul
Sic
EPDM
G60
PCS
03MG0112LD5E
12,0
Kul
Sic
EPDM
L-DIN
PCS
03MG0114043E
14,0
Kul
Cer
NBR
G4
PCS
03MG0116065E
16,0
Kul
Sic
EPDM
G6
PCS
03MG0116503V
16,0
Kul
Cer
Viton
G50
PCS
03MG0116505E
16,0
Kul
Sic
EPDM
G50
PCS
03MG0116605N
16,0
Kul
Sic
NBR
G60
PCS
03MG0116605V
16,0
Kul
Sic
Viton
G60
PCS
03MG0116OL5E
16,0
Kul
Sic
EPDM
L
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Stationary
type
Base unit
03MG0118043E
18,0
Kul
Cer
NBR
G4
PCS
03MG0120015V
20,0
Kul
Sic
VITON
L1DIN
PCS
03MG0120053E
20,0
Kul
Cer
EPDM
G50
PCS
03MG0120055E
20,0
Kul
Sic
EPDM
G50
PCS
03MG0120065E
20,0
Kul
Sic
EPDM
G6
PCS
03MG0120603E
20,0
Kul
Cer
EPDM
G60
PCS
03MG0120605E
20,0
Kul
Sic
EPDM
G60
PCS
03MG0120607V
20,0
Sic
Sic
Viton
G60
PCS
03MG0122605E
22,0
Kul
Sic
EPDM
G60
PCS
03MG0122607E
22,0
Sic
Sic
EPDM
G60
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Stationary
type
Base unit
03MG0122607V
22,0
Sic
Sic
Viton
G60
PCS
03MG0124605V
24,0
Kul
Sic
Viton
G60
PCS
03MG0124607E
24,0
Sic
Sic
EPDM
G60
PCS
03MG0125505E
25,0
Kul
Sic
EPDM
G50
PCS
03MG0125607E
25,0
Sic
Sic
EPDM
G60
PCS
03MG0125607V
25,0
Sic
Sic
Viton
G60
PCS
03MG0128065E
28,0
Kul
Sic
EPDM
G6
PCS
03MG0128067E
28,0
Sic
Sic
EPDM
G6
PCS
03MG0128503N
0
0
0
0
0
0
03MG0128605N
28,0
Kul
Sic
NBR
G60
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Stationary
type
Base unit
03MG0128607E
28,0
Sic
Sic
EPDM
G60
PCS
03MG0130043N
30,0
Kul
Sic
NBR
G4
PCS
03MG0130503N
30,0
Kul
Cer
NBR
G50
PCS
03MG0130505N
30,0
Kul
Sic
NBR
G50
PCS
03MG0130605E
30,0
Kul
Sic
EPDM
G60
PCS
03MG0130607E
30,0
Sic
Sic
EPDM
G60
PCS
03MG0130607N
30,0
Sic
Sic
NBR
G60
PCS
03MG0130607V
30,0
Sic
Sic
Viton
G60
PCS
03MG0132605V
32,0
Kul
Sic
Viton
G60
PCS
03MG0133067E
33,0
Sic
Sic
EPDM
G6
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Stationary
type
Base unit
03MG0135047E
35,0
Sic
Sic
EPDM
G4
PCS
03MG0135067E
35,0
Sic
Sic
EPDM
G6
PCS
03MG0135507N
35,0
Sic
Sic
NBR
G50
PCS
03MG0135605E
35,0
Kul
Sic
EPDM
G60
PCS
03MG0135607V
35,0
Sic
Sic
Viton
G60
PCS
03MG0138605E
38,0
Kul
Sic
EPDM
G60
PCS
03MG0138605V
38,0
Kul
Sic
Viton
G60
PCS
03MG0138607E
38,0
Sic
Sic
EPDM
G60
PCS
03MG0140503E
40,0
Kul
Cer
EPDM
G50
PCS
03MG0140505E
40,0
Kul
Sic
EPDM
G50
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Stationary
type
Base unit
03MG0140507N
40,0
Sic
Sic
NBR
G50
PCS
03MG0140605E
40,0
Kul
Sic
EPDM
G60
PCS
03MG0140607V
40,0
Sic
Sic
Viton
G60
PCS
03MG0143067E
43,0
Sic
Sic
EPDM
G6
PCS
03MG0143607E
43,0
Sic
Sic
EPDM
G60
PCS
03MG0143607V
43,0
Sic
Sic
Viton
G60
PCS
03MG0145067E
45,0
Sic
Sic
EPDM
G6
PCS
03MG0145505E
45,0
Kul
Sic
EPDM
G50
PCS
03MG0145607V
45,0
Sic
Sic
Viton
G60
PCS
03MG0148065V
48,0
Kul
Sic
Viton
G6
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Stationary
type
Base unit
03MG0155067V
55,0
Sic
Sic
Viton
G6
PCS
03MG0155607V
55,0
Sic
Sic
Viton
G60
PCS
03MG0160043E
60,0
Kul
Cer
EPDM
G4
PCS
03MG0160045E
60,0
Kul
Sic
EPDM
G4
PCS
03MG0160047E
60,0
Sic
Sic
EPDM
G4
PCS
03MG0160097V
60,0
Sic
Sic
Viton
L9
PCS
03MG0160503E
60,0
Kul
Cer
EPDM
G50
PCS
03MG0160507V
60,0
Sic
Sic
Viton
G50
PCS
03MG0160603E
60,0
Kul
Cer
EPDM
G60
PCS
03MG0160605V
60,0
Kul
Sic
Viton
G60
PCS
Product number Shaft dia.
mm
Rotating part
material
Stationary part
material
Elastomer
type
Stationary
type
Base unit
03MG0165067E
65,0
Sic
Sic
EPDM
G6
PCS
03MG0165605E
65,0
Kul
Sic
EPDM
G60
PCS
03MG0170047E
70,0
Sic
Sic
EPDM
G4
PCS
03MG0175067E
75,0
Sic
Sic
VITON
G 6
PCS
03MG0180505V
80,0
Kul
Sic
Viton
G50
PCS
03MG0180507E
80,0
Sic
Sic
EPDM
G6
PCS
