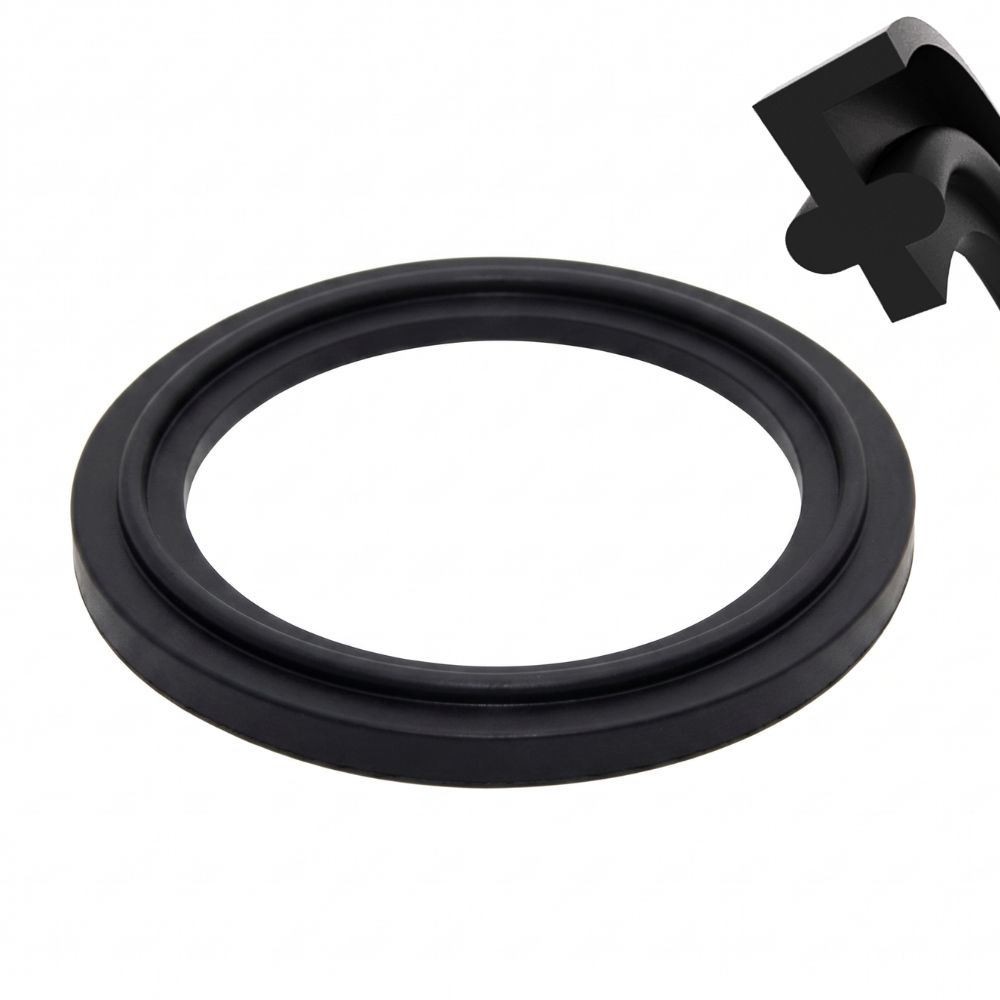

Clamp union gasket, EPDM, ASME-BPE, with lip

Application:

  • Gasket for pipe and process unions, Clamp type ASME-BPE.
  • Good resistance to many organic liquids, including acids, alkalis and CIP/SIP.
  • Not suitable for mineral oils and grease.

Construction:

Manufactured from ethylene propylene rubber (EPDM).

Standards:

Certified to FDA/USP.

ASME-BPE.

Temperature:

Temperature range from -40°C to +150°C.

Item number Nominal dim.
inch
ID Ø dia.
mm.
OD Ø dia.
mm.
Height H
mm.
Elastomer
type
Base unit Quantity
0304510127 1/2" 9,6 12,7 2,1 EPDM PCS
0304510191 3/4" 15,9 19,05 2,1 EPDM PCS
0304519150 1" 22,3 50,5 2,1 EPDM PCS
0304519190 1½" 35,0 38,1 2,1 EPDM PCS
0304519230 2" 47,7 50,8 2,1 EPDM PCS
0304519250 2½" 60,5 63,5 2,1 EPDM PCS
0304519270 3" 73,1 76,1 2,1 EPDM PCS
0304519290 4" 97,8 101,6 2,1 EPDM PCS
0304519350 6" 147,2 152,4 2,1 EPDM PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
