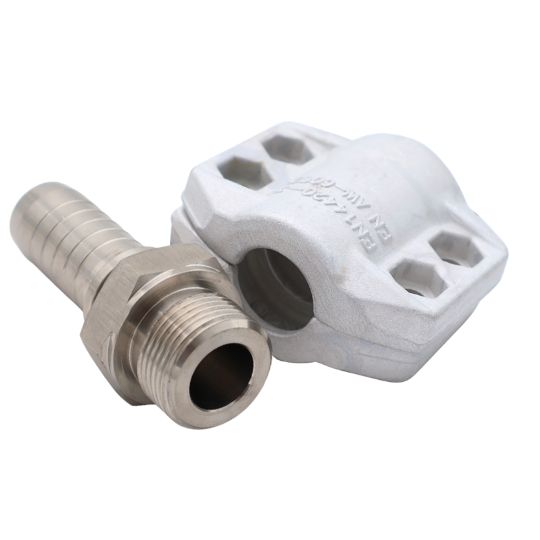

BSP nipple, stainless

Application:

Hose clamp with BSP nipple for product hoses to be connected to equipment. The hose clamp is fastened in place with aluminium jaws, which ensure a relatively low weight.

Construction:

The hose clamp consists of a connection and a set of jaws that are clamped together around the hose. The hose clamp can be reused when replacing the hose.

  • Supplied with a BSP nipple.
  • Connections between 3/8" and up to 4".

Quality:

The connection piece is made of AISI 316L stainless steel and marked with a batch number. The jaws are made of aluminium.

Item number Nominal dim.
mm. 		Ø ID hose
mm. 		Ø OD hose
mm. 		Connection
RG 		Base unit Quantity
046200011305 13,0 13,0 21-25 3/8" PCS
046200011305A 13,0 13,0 21-25 1/2" PCS
046200012006 20,0 20,0 29-33 3/4" PCS
046200012006A 20,0 20,0 29-33 1" PCS
046200012505 25,0 25,0 34-37 1" PCS
046200012505A 25,0 25,0 34-37 1 1/4" PCS
046200012506 25,0 25,0 36-39 1" PCS
046200012506A 25,0 25,0 36-39 1 1/4" PCS
046200012508 25,0 25,0 40-43 1" PCS
046200012508A 25,0 25,0 40-43 1 1/4" PCS
046200013206 32,0 32,0 42-46 1 1/4" PCS
046200013208 32,0 32,0 46-50 1 1/4" PCS
046200013805 38,0 38,0 47-51 1½" PCS
046200013806 38,0 38,0 49-53 1½" PCS
046200013808 38,0 38,0 52-56 1½" PCS
046200015005 50,0 50,0 59-61 2" PCS
046200015006 50,0 50,0 62-64 2" PCS
046200015008 50,0 50,0 63-67 2" PCS
046200015010 50,0 50,0 68-72 2" PCS
046200016306 63,0 63,0 74-77 2½" PCS
046200016306A 63,0 63,0 74-77 3" PCS
046200016308 63,0 63,0 77-81 2½" PCS
046200016308A 63,0 63,0 77-81 3" PCS
046200017506 75,0 75,0 87-90 3" PCS
046200017508 75,0 75,0 89-94 3" PCS
046200017510 75,0 75,0 94-98 3" PCS
046200017512 75,0 75,0 98-101 3" PCS
046200019908 100,0 100,0 114-119 4" PCS
046200019910 100,0 100,0 118-122 4" PCS
046200019916 100,0 100,0 130-134 4" PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
