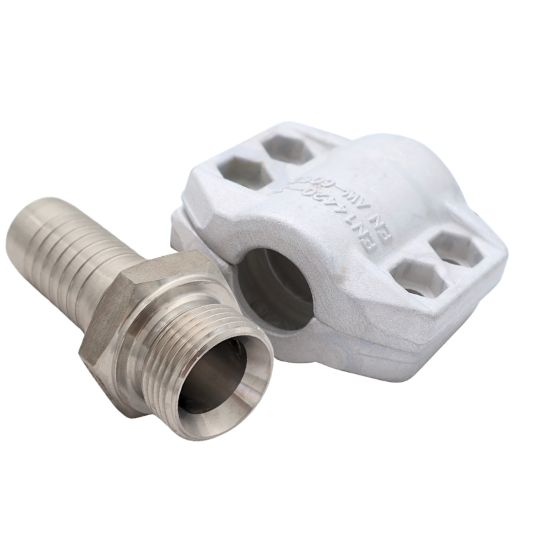

BSP nipple, 60° cone, stainless
BSP nipple, 60° cone, stainless

Related news

Optimise your operating economy with our reassembly service
Optimise your operating economy with our reassembly service
The Hose Selection Guide: Perfect fit
The Hose Selection Guide: Perfect fit
Do you know about the couplings that can be replaced in a flash?
Do you know about the couplings that can be replaced in a flash?

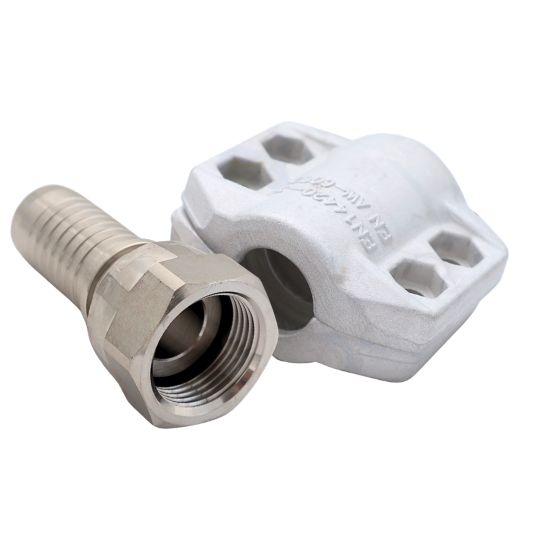

BSP nut, stainless

Application:

Hose clamp with BSP nut for product hoses to be connected to equipment. The hose clamp is fastened in place with aluminium jaws, which ensure a relatively low weight.

Construction:

The hose clamp consists of a connection and a set of jaws that are clamped together around the hose. The hose clamp can be reused when replacing the hose.

  • Supplied with a BSP nut.
  • Connections between 3/8" and up to 3".

Quality:

The connection piece is made of AISI 316L stainless steel and marked with a batch number. The jaws are made of aluminium.

Item number Nominal dim.
mm. 		Ø ID hose
mm. 		Ø OD hose
mm. 		Connection
RG 		Base unit Quantity
046200031305 13,0 13,0 21-25 3/8" PCS
046200031305A 13,0 13,0 21-25 1/2" PCS
046200031305B 13,0 13,0 21-25 3/4" PCS
046200032006 20,0 20,0 29-33 3/4" PCS
046200032006A 20,0 20,0 29-33 1" PCS
046200032505 25,0 25,0 34-37 1" PCS
046200032505A 25,0 25,0 34-37 1 1/4" PCS
046200032506 25,0 25,0 36-39 1" PCS
046200032506A 25,0 25,0 36-39 1 1/4" PCS
046200032508 25,0 25,0 40-43 1" PCS
046200032508A 25,0 25,0 40-43 1 1/4" PCS
046200033206 32,0 32,0 42-46 1 1/4" PCS
046200033208 32,0 32,0 46-50 1 1/4" PCS
046200033805 38,0 38,0 47-51 1 1/2" PCS
046200033806 38,0 38,0 49-53 1 1/2" PCS
046200033808 38,0 38,0 52-56 1 1/2" PCS
046200035005 50,0 50,0 59-61 2" PCS
046200035005A 50,0 50,0 59-61 2 1/2" PCS
046200035006 50,0 50,0 62-64 2" PCS
046200035006A 50,0 50,0 62-64 2 1/2" PCS
046200035008 50,0 50,0 63-67 2" PCS
046200035008A 50,0 50,0 63-67 2 1/2" PCS
046200035010 50,0 50,0 68-72 2" PCS
046200035010A 50,0 50,0 68-72 2 1/2" PCS
046200036406 63,0 63,0 74-77 2 1/2" PCS
046200036408 63,0 63,0 77-81 2 1/2" PCS
046200037506 75,0 75,0 87-90 3" PCS
046200037508 75,0 75,0 89-94 3" PCS
046200037510 75,0 75,0 94-98 3" PCS
046200037512 75,0 75,0 98-101 3" PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
