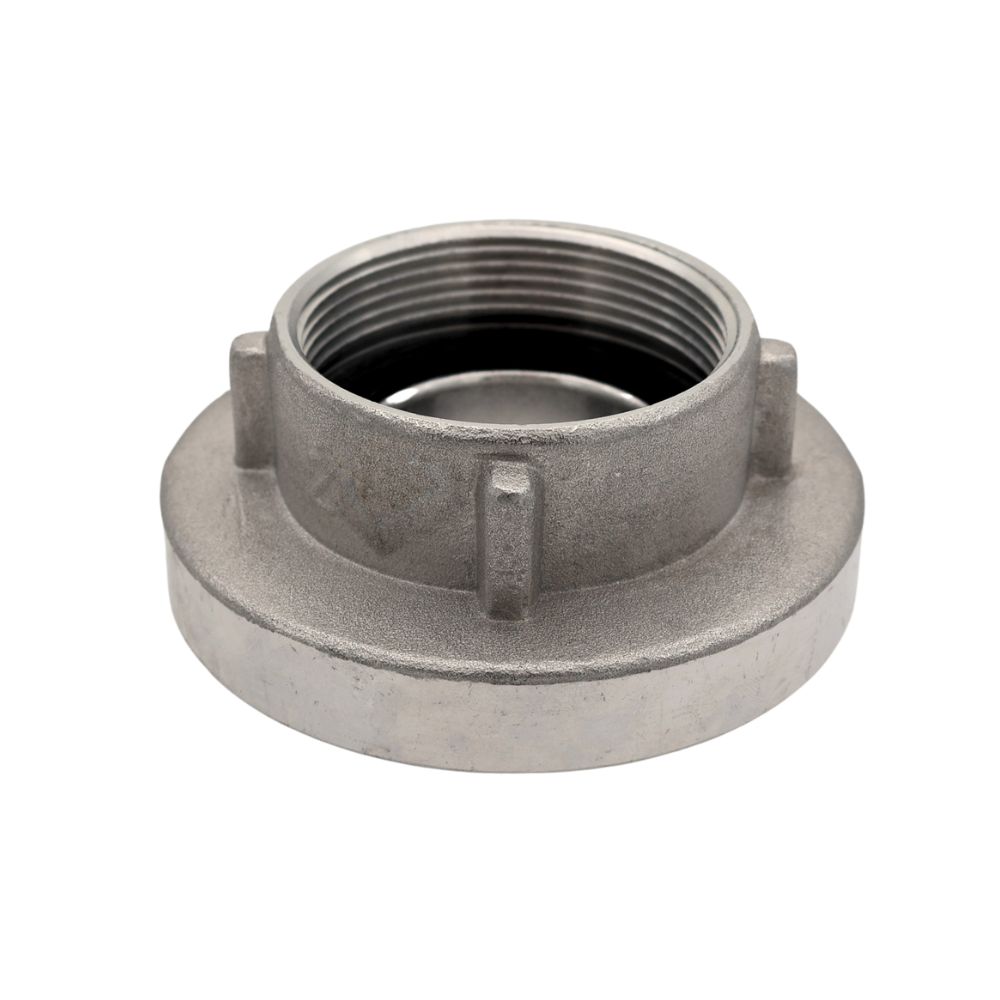

Storz coupling, fixed, stainless

Application

Used, among other things, for connecting flat hoses, pumps and tankers in industries within chemical production, water supply and transport.

Construction:

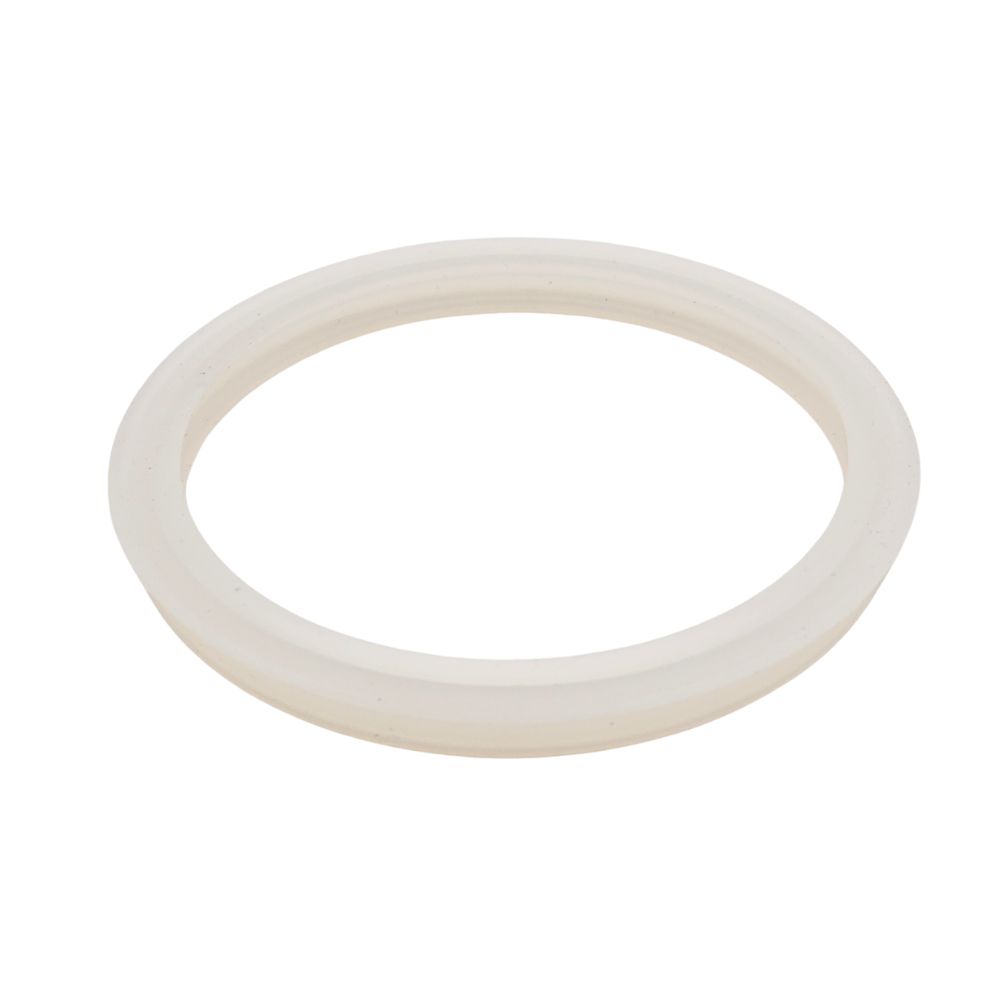

Gasket:

The gasket is supplied in FKM as standard.

Specifications

Nominal size: 1‘ - 4’.

Available in model types 25-D, 52-C, 75-B and 110-A.

Operating conditions

Working pressure: max. 16 bar.

Download data sheet

Item number	Nominal dim. inch	Type	Jaw dist. mm	Connection RG	Gasket type	Base unit
0473002525	1"	25-D	31,0	1"	FKM	PCS
0473005225	1"	52-C	66,0	1"	FKM	PCS
0473005226	1 1/4"	52-C	66,0	1 1/4"	FKM	PCS
0473005250	2"	52-C	66,0	2"	FKM	PCS
0473007550	3"	75-B	89,0	2"	FKM	PCS
0473007565	2 1/2"	75-B	89,0	2 1/2"	FKM	PCS
0473007580	3"	75-B	89,0	3"	FKM	PCS
04730100100	4"	100	115,0	4"	FKM	PCS
04730110100	4"	110-A	133,0	4"	FKM	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
