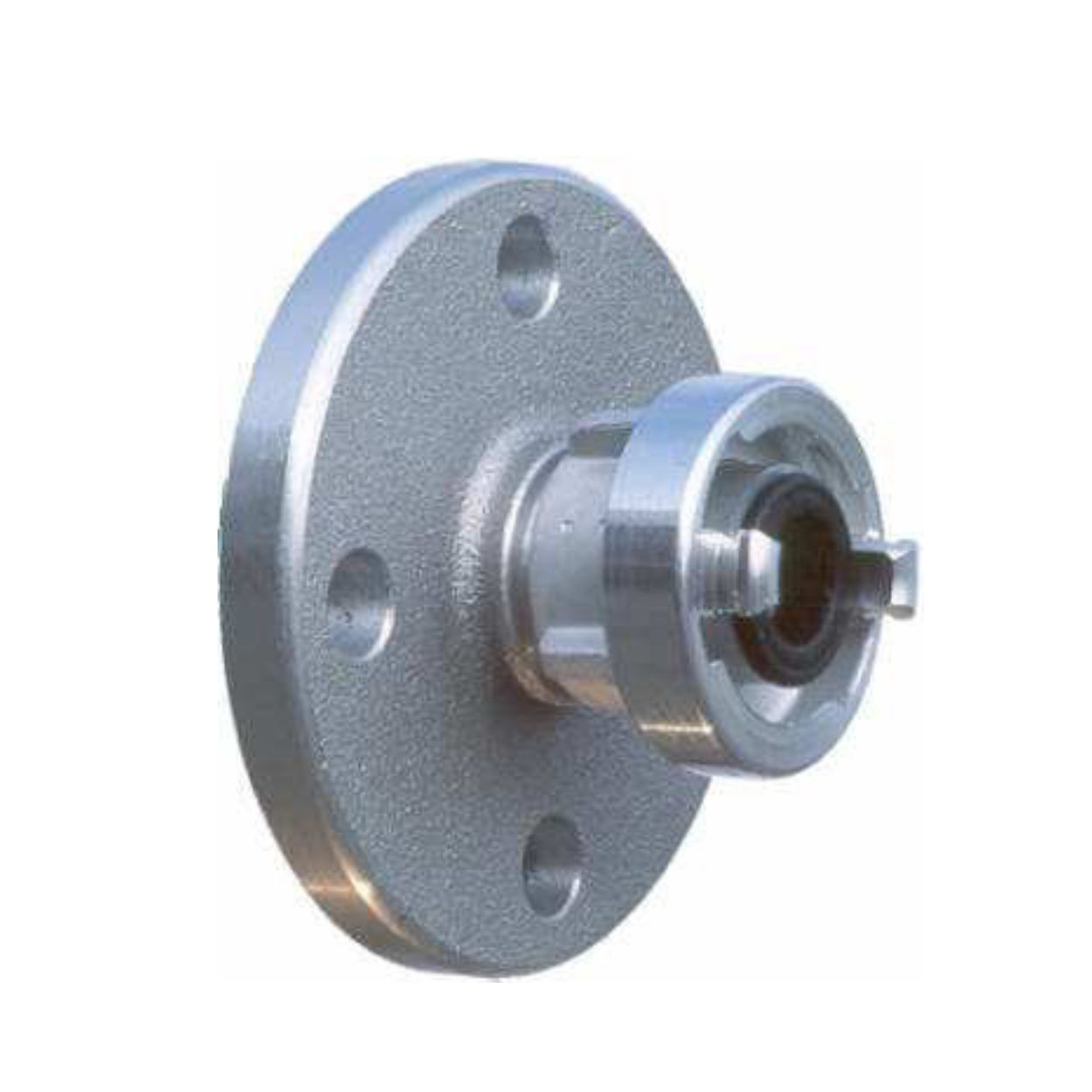

Storz coupling reducer, flange, stainless

Application:

Used, among other things, for connecting flat hoses, pumps and tankers in industries within chemical production, water supply and transport.

Construction:

  • Manufactured in stainless steel AISI 316 / EN1.4581.
  • Complies with the DIN 2501 standard.

Specifications

Available in model types 25-D, 52-C, 65, 75-B and 110-A.

Operating conditions

Working pressure: max. 16 bar.

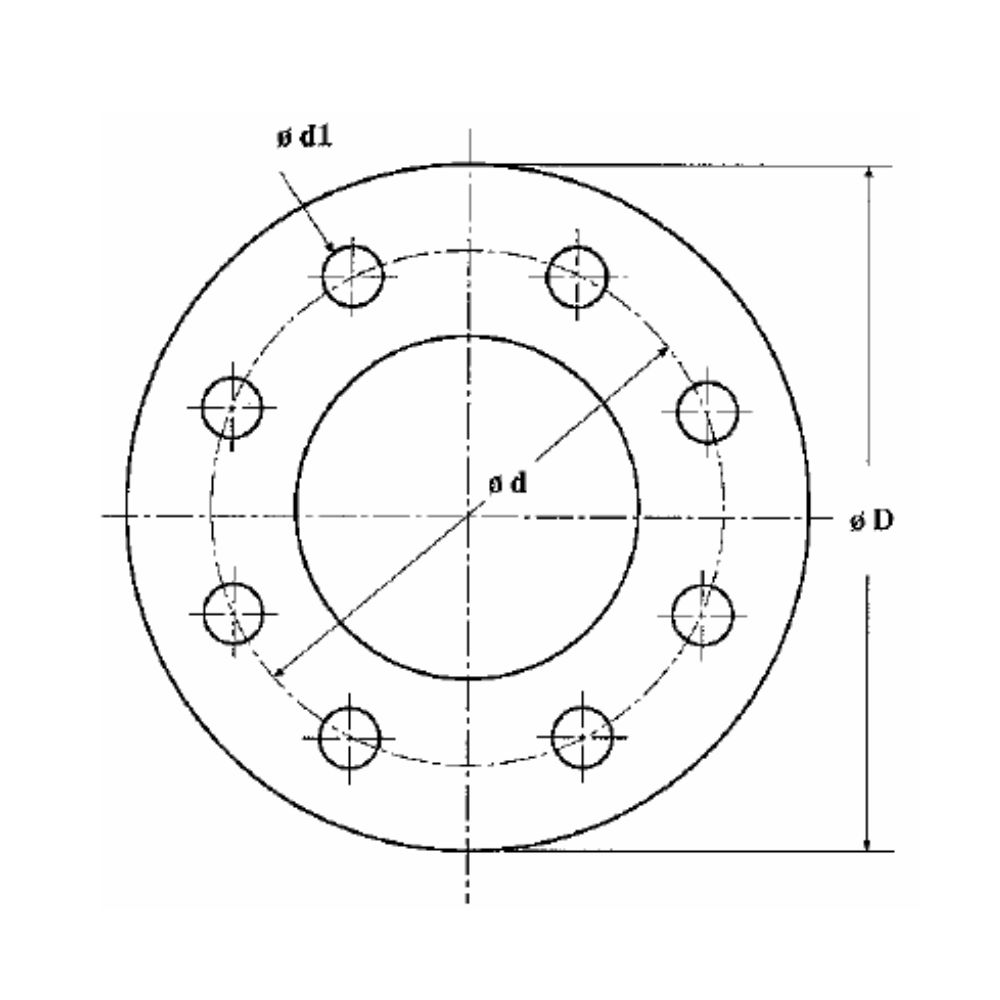

Item number Nom. dim. - DN Type Flange dimensions mm. Jaw dist.
mm 		Material type Net weight
kg. 		Base unit Quantity
04734200025D DN25 25-D 115,0 31,0 AISI 316 1,37 PCS
04734200052C DN50 52-C 165,0 66,0 AISI 316 3,28 PCS
04734200065 DN65 65 185,0 81,0 AISI 316 3,90 PCS
04734200075B DN80 75-B 200,0 89,0 AISI 316 5,57 PCS
04734200110A DN100 110-A 220,0 133,0 AISI 316 8,10 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
