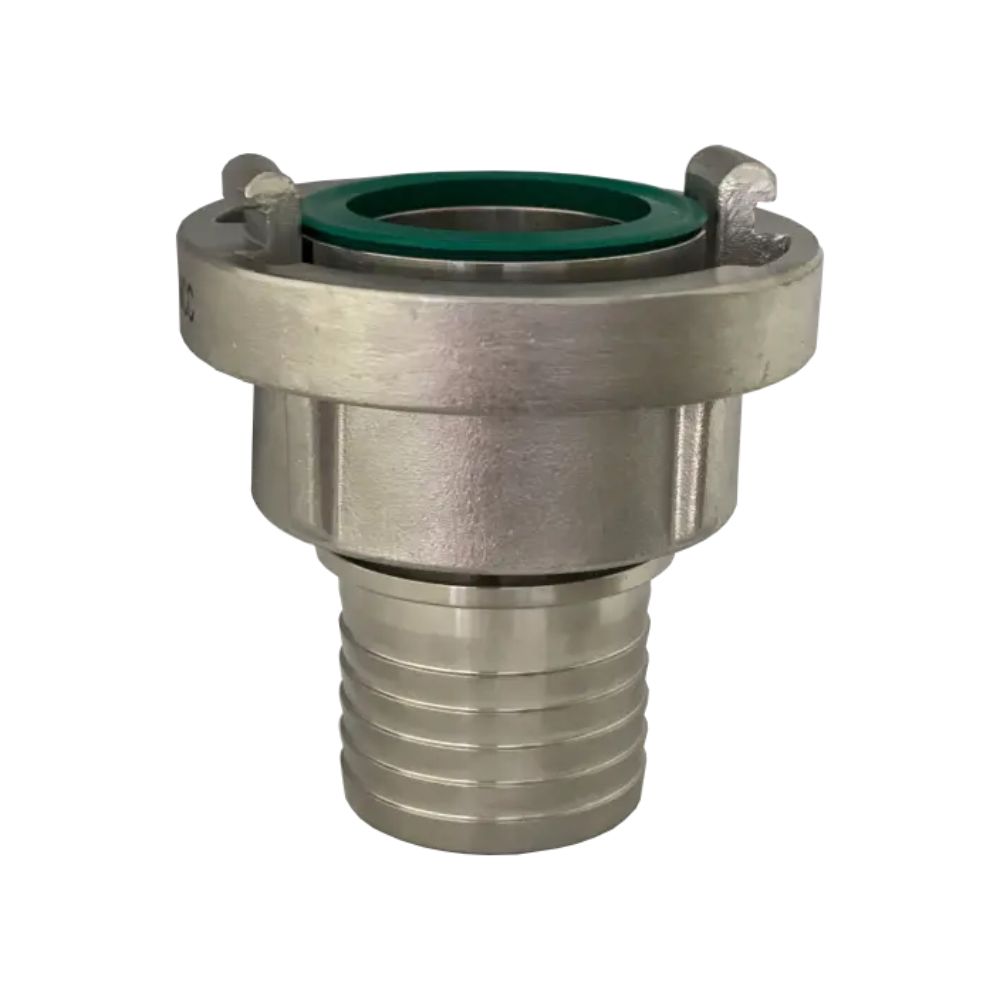

Storz-coupling, swivel, with hose tail, stainless

Application:

Used for water supply, pump systems and demanding industrial applications where quick and user-friendly connection and disconnection is required.

Construction:

• Made of stainless steel AISI 316 / EN1.4581
• Rotatable with knurled hose tail
• Compatible with safety clamps

Gasket:

The gasket is supplied in FKM as standard.

Specifications:

Nominal dim.: DN25-DN100.

Available in model types 52-C, 100-A and 110-A.

Operating conditions:

Working pressure: max. 16 bar.
