Thermoclean 100

Application:

Hot water hose suitable for rinsing and cleaning tasks in the food industry. Can be used for non-fatty foods.

Construction:

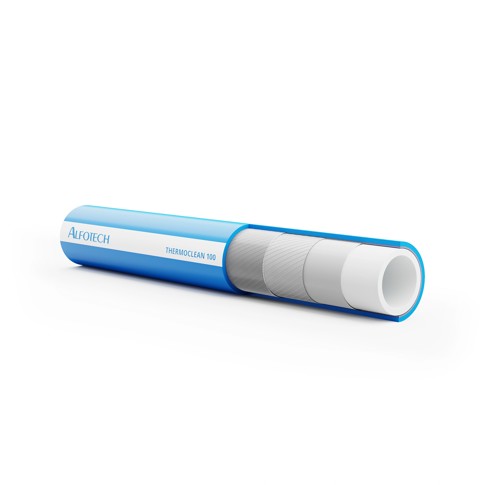

Thermoclean 100 is built in 5 layers made of PVC. Between the inner and outer layers, the hose is reinforced with a layer of resistant polyester. The hose has a strong blue surface, which can withstand grease, detergents, and radiation. The hose is white and smooth on the inside and blue and smooth on the outside.

  • Resistant to grease and conventional cleaning agents
  • Insulated with a thermal layer, which reduces the risk of scalding
  • Flexible hose and good resistance at high temperatures

Technical specifications

Temperature:

The temperature ranges from -15°C to +100°C.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

EC 1935/2004 and 2023/2006/EC (GMP), EU Regulation 10/2011/EU, as well as simulator A, B, and C.

Safety factor:

Maximum up to 30 bar working pressure at + 20°C. Burst pressure of 90 bar.
Maximum up to 15 bar working pressure at + 100°C. Burst pressure of 45 bar.

Approvals

Product number Inner dia.
mm
Outer dia.
mm
Bending radius
mm
Working pressure
bar
Burst pressure
bar
Color Metres per
coil
Net weight
kg
Base unit
0414000130
13,0
22,0
40,0
15,0
45,0
Blue
40,0
0,306
MTR
0414000160
16,0
25,0
50,0
15,0
45,0
Blue
40,0
0,358
MTR
0414000200
19,0
28,0
60,0
15,0
45,0
Blue
40,0
0,408
MTR
0414000250
25,0
34,0
75,0
13,0
39,0
Blue
40,0
0,513
MTR
