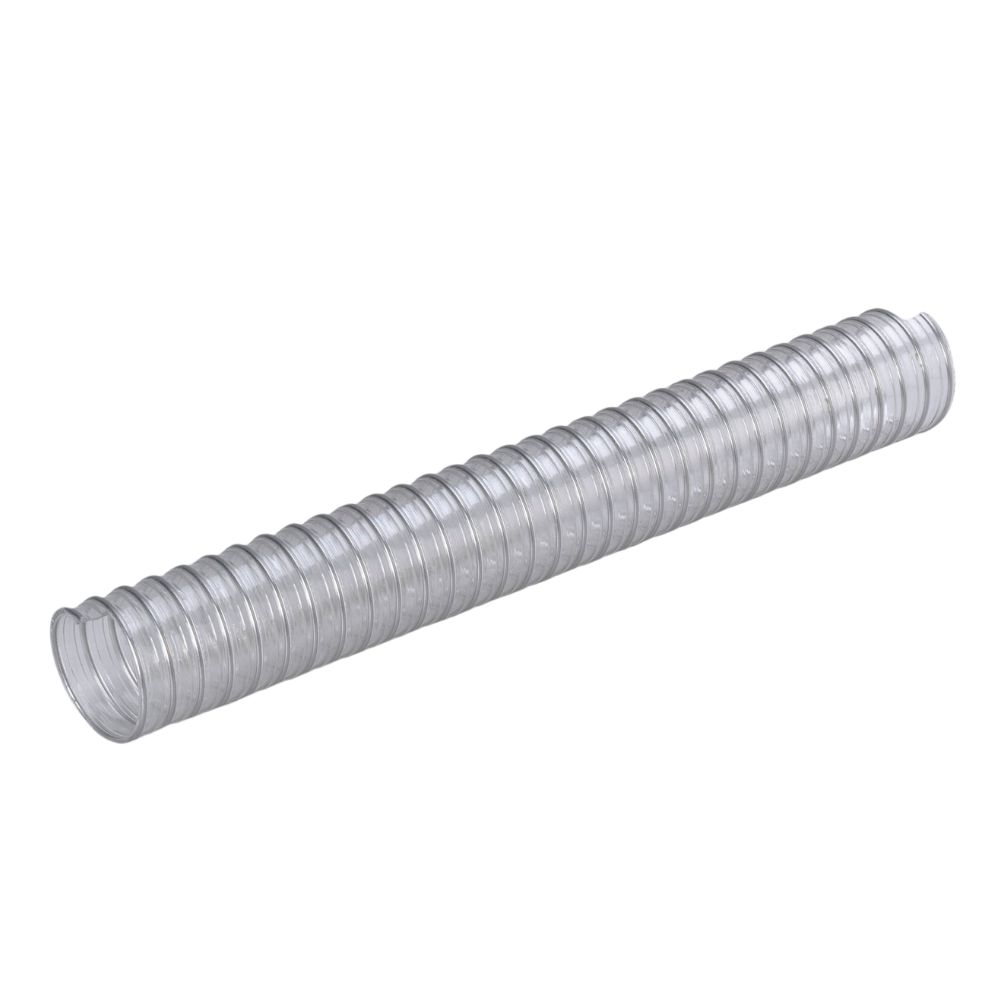

Antistatic food-grade polyurethane hose

NEXT 15 ET Antistatic

Application:

Polyurethane hose suitable for suctioning extremely abrasive media in the food and pharmaceutical industries.

To dissipate any electrostatic charges, the hose should be grounded with the installation.

Construction:

Transparent hose made of ether-based polyurethane. Transparent so that the circulation of the medium is clearly visible. Constant wall thickness of 1.5 mm for heavy suction of abrasive media.

Reinforced with stainless steel spiral
Permanent antistatic wall material (R<10⁹ Ohm/m)
Antistatic, UV, microbiological and hydrolysis resistant
Designed for taste- and odor-free transport of media

Temperature:

The temperature ranges from -40°C to +90°C.

Vacuum:

All pressures are stated at the temperature +20°C.

Standards:

EC 1935/2004, 2023/2006/EC (GMP), EU 2020/1245, EU 2024/3190, FDA CFR 21-177.2600. The material is free from plasticisers, latex and bisphenol A (BPA). EU 10/2011 (Class A, B, C, D1, D2, E). Supplied with batch number for full traceability.

Approvals:

$Latex Free Blue Rgb$ Bpa Free Blue Rgb

Item number	Inner dia. mm	Outer dia. mm	Bending radius mm.	Vacuum bar	Color	Metres per coil	Net weight kg.	Base unit
0409330032	32,0	35,0	80,0	0,60	Transparent	30,0	0,35	MTR
0409330040	40,0	43,0	90,0	0,95	Transparent	30,0	0,42	MTR
0409330045	45,0	48,0	90,0	0,90	Transparent	30,0	0,54	MTR
0409330051	51,0	54,0	90,0	0,90	Transparent	30,0	0,59	MTR
0409330060	60,0	63,0	95,0	0,85	Transparent	30,0	0,70	MTR
0409330064	63,5	67,0	100,0	0,80	Transparent	30,0	0,79	MTR
0409330065	65,0	68,0	100,0	7,5	Transparent	30,0	0,80	MTR
0409330076	76,0	79,0	110,0	0,70	Transparent	30,0	0,97	MTR
0409330080	80,0	83,0	110,0	0,60	Transparent	30,0	1,01	MTR
0409330090	90,0	93,0	115,0	5,0	Transparent	20,0	1,13	MTR
0409330100	100,0	103	120,0	4,0	Transparent	20,0	1,15	MTR
0409330102	102,0	105,0	120,0	0,40	Transparent	20,0	1,18	MTR
0409330110	110,0	0113	130,0	0,32	Transparent	20,0	1,27	MTR
0409330120	120,0	123,0	150,0	0,30	Transparent	20,0	1,31	MTR

Item number

Inner dia.
mm

Outer dia.
mm

Bending radius
mm.

Vacuum
bar

Color

Metres per
coil

Net weight
kg.

Base unit

Quantity

0409330032

32,0

35,0

80,0

0,60

Transparent

30,0

0,35

MTR

0409330040

40,0

43,0

90,0

0,95

Transparent

30,0

0,42

MTR

0409330045

45,0

48,0

90,0

0,90

Transparent

30,0

0,54

MTR

0409330051

51,0

54,0

90,0

0,90

Transparent

30,0

0,59

MTR

0409330060

60,0

63,0

95,0

0,85

Transparent

30,0

0,70

MTR

0409330064

63,5

67,0

100,0

0,80

Transparent

30,0

0,79

MTR

0409330065

65,0

68,0

100,0

7,5

Transparent

30,0

0,80

MTR

0409330076

76,0

79,0

110,0

0,70

Transparent

30,0

0,97

MTR

0409330080

80,0

83,0

110,0

0,60

Transparent

30,0

1,01

MTR

0409330090

90,0

93,0

115,0

5,0

Transparent

20,0

1,13

MTR

0409330100

100,0

103

120,0

4,0

Transparent

20,0

1,15

MTR

0409330102

102,0

105,0

120,0

0,40

Transparent

20,0

1,18

MTR

0409330110

110,0

0113

130,0

0,32

Transparent

20,0

1,27

MTR

0409330120

120,0

123,0

150,0

0,30

Transparent

20,0

1,31

MTR
