Durable Crystal Clear 55 thermoplastic hose

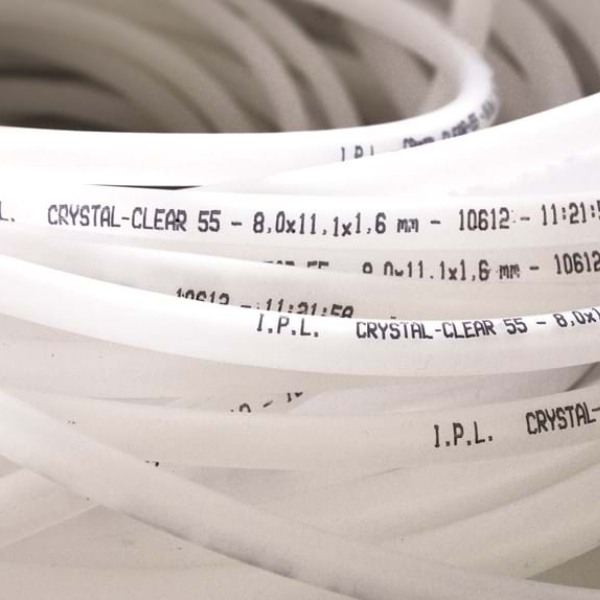

Crystal Clear 55

Application:

Crystal Clear 55 is a hygienic thermoplastic hose specially designed for hose pumps (also known as peristaltic pumps), food, pharmaceuticals, biotechnology and cosmetics. The hose has a high abrasion resistance and can also be used for media with up to 50% alcohol.

Construction:

Crystal Clear 55 is made of thermoplastic TPE-S and hardening-free material that does not need to be vulcanized. Therefore, there is no risk of leaching of hardener residues in the medium (peroxide or platinum volatile residues). Good chemical resistance to acids and alkaline solutions and resistant to alcohol with max. 50% concentration.

Designed for tasteless and odourless transport of media
ETO, gamma ray and chemical resistant
Welding of several lengths possible

Temperature:

The temperature ranges from -20°C to +80°C. Briefly up to +135°C.
The hose can be sterilized by autoclaving, ETO, gamma radiation, and chemicals.

Pressure:

All pressures are stated at the temperature +20°C.

Standards:

EC 1935/2004, 2023/2006/EC (GMP), EU 2020/1245, EU 2024/3190, FDA CFR 21-177.2600, USP Class VI. The material is free from plasticisers, latex and bisphenol A (BPA). EU 10/2011 (classes A, B, C, D1). Supplied with batch number for full traceability.

Approvals:

$Latex Free Blue Rgb$ Bpa Free Blue Rgb

Item number	Inner dia. mm	Outer dia. mm	Bending radius mm.	Working pressure bar	Vacuum bar	Color	Metres per coil	Net weight kg.	Base unit
0408960306	3,2	6,4	12,8	0,9	0,640	Transparent	15,2	0,020	MTR
0408960308	3,2	8,0	12,8	1,1	0,680	Transparent	15,2	0,035	MTR
0408960508	4,8	8,0	19,2	0,9	0,540	Transparent	15,2	0,030	MTR
0408960509	4,8	9,5	19,1	0,9	0,540	Transparent	15,2	0,050	MTR
0408960609	6,3	9,5	31,7	0,7	0,410	Transparent	15,2	0,035	MTR
0408960611	6,3	11,1	31,7	1,1	0,640	Transparent	15,2	0,060	MTR
0408960613	6,3	12,7	38,1	1,2	0,680	Transparent	15,2	0,085	MTR
0408960811	7,9	11,1	55,3	0,6	0,260	Transparent	15,2	0,040	MTR
0408960813	7,9	12,7	63,2	0,9	0,450	Transparent	15,2	0,070	MTR
0408960913	9,5	12,7	66,5	0	0,225	Transparent	15,2	0,050	MTR
0408960914	9,5	14,3	52,2	0,7	0,600	Transparent	15,2	0,080	MTR
0408960916	9,5	15,9	52,2	1,0	0,600	Transparent	7,5	0,115	MTR
0408961317	12,7	17,5	76,2	0,6	0,430	Transparent	7,5	0,100	MTR
0408961319	12,7	19,1	76,2	0,9	0,410	Transparent	7,5	0,140	MTR

Item number

Inner dia.
mm

Outer dia.
mm

Bending radius
mm.

Working pressure
bar

Vacuum
bar

Color

Metres per
coil

Net weight
kg.

Base unit

Quantity

0408960306

3,2

6,4

12,8

0,9

0,640

Transparent

15,2

0,020

MTR

0408960308

3,2

8,0

12,8

1,1

0,680

Transparent

15,2

0,035

MTR

0408960508

4,8

8,0

19,2

0,9

0,540

Transparent

15,2

0,030

MTR

0408960509

4,8

9,5

19,1

0,9

0,540

Transparent

15,2

0,050

MTR

0408960609

6,3

9,5

31,7

0,7

0,410

Transparent

15,2

0,035

MTR

0408960611

6,3

11,1

31,7

1,1

0,640

Transparent

15,2

0,060

MTR

0408960613

6,3

12,7

38,1

1,2

0,680

Transparent

15,2

0,085

MTR

0408960811

7,9

11,1

55,3

0,6

0,260

Transparent

15,2

0,040

MTR

0408960813

7,9

12,7

63,2

0,9

0,450

Transparent

15,2

0,070

MTR

0408960913

9,5

12,7

66,5

0,225

Transparent

15,2

0,050

MTR

0408960914

9,5

14,3

52,2

0,7

0,600

Transparent

15,2

0,080

MTR

0408960916

9,5

15,9

52,2

1,0

0,600

Transparent

7,5

0,115

MTR

0408961317

12,7

17,5

76,2

0,6

0,430

Transparent

7,5

0,100

MTR

0408961319

12,7

19,1

76,2

0,9

0,410

Transparent

7,5

0,140

MTR
