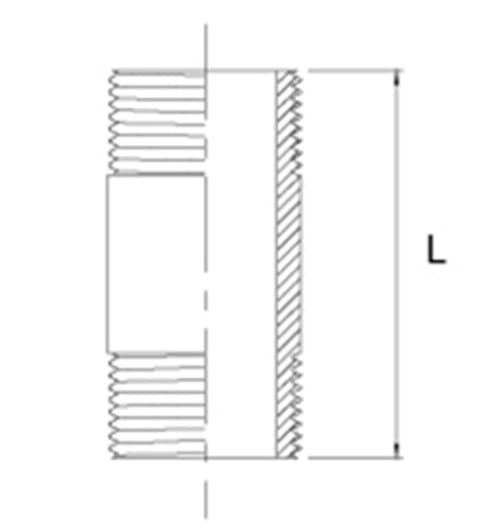

Barrel nipple, stainless AISI 316

Made of stainless steel AISI 316.

Pressure stage 40 bar.

Product number Nominal dim.
inch
Length L
mm.
Net weight
kg.
Base unit
0100009020
1/8"
40,0
0,016
PCS
0100009060
1/4"
40,0
0,023
PCS
0100009061
1/4"
60,0
0,034
PCS
0100009062
1/4"
80
0,046
PCS
0100009063
1/4"
150,0
0,086
PCS
0100009080
3/8"
40,0
0,030
PCS
0100009081
3/8"
60,0
0,045
PCS
0100009082
3/8"
180,0
0,135
PCS
0100009083
3/8"
100,0
0,075
PCS
0100009084
3/8"
80,0
0,065
PCS
0100009100
1/2"
60,0
0,066
PCS
Product number Nominal dim.
inch
Length L
mm.
Net weight
kg.
Base unit
0100009101
1/2"
75,0
0,083
PCS
0100009102
1/2"
50,0
0,055
PCS
0100009103
1/2"
100
0,110
PCS
0100009104
1/2"
150,0
0,165
PCS
0100009105
1/2"
90,0
0,100
PCS
0100009130
3/4"
40,0
0,084
PCS
0100009131
3/4"
60,0
0,126
PCS
0100009132
3/4"
90,0
0,210
PCS
0100009133
3/4"
150,0
0,056
PCS
0100009150
1"
60,0
0,120
PCS
Product number Nominal dim.
inch
Length L
mm.
Net weight
kg.
Base unit
0100009151
1"
100,0
0,200
PCS
0100009152
1"
150,0
0,300
PCS
0100009170
1 1/4"
80
0,216
PCS
0100009171
1 1/4"
150,0
0,405
PCS
0100009190
1 1/2"
80
0,240
PCS
0100009191
1 1/2"
150,0
0,450
PCS
0100009230
2"
100,0
0,600
PCS
0100009231
2"
200,0
1,000
PCS
0100009250
2 1/2"
100,0
0,500
PCS
0100009270
3"
120,0
0,750
PCS
Product number Nominal dim.
inch
Length L
mm.
Net weight
kg.
Base unit
0100009290
4"
100,0
0,900
PCS
