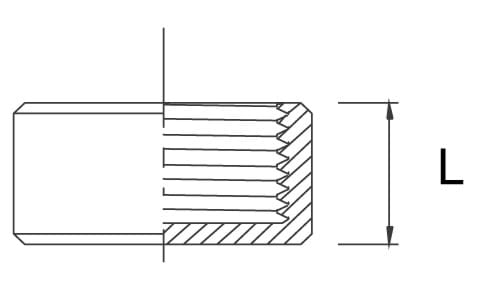

Bushing, half, stainless AISI 316

Made of stainless steel AISI 316.

Pressure stage 10 bar.

Download productsheet

Product number	Nominal dim. inch	Length L mm.	Net weight kg.	Base unit
0100189020	1/8"	11,0	0,010	PCS
0100189060	1/4"	13,0	0,015	PCS
0100189080	3/8"	14,0	0,020	PCS
0100189100	1/2"	18,0	0,030	PCS
0100189130	3/4"	19,0	0,047	PCS
0100189150	1"	21,0	0,054	PCS
0100189170	1 1/4"	23,0	0,195	PCS
0100189190	1 1/2"	23,0	0,120	PCS
0100189230	2"	27,0	0,155	PCS
0100189250	2 1/2"	32,0	0,340	PCS
0100189270	3"	35,0	0,325	PCS
