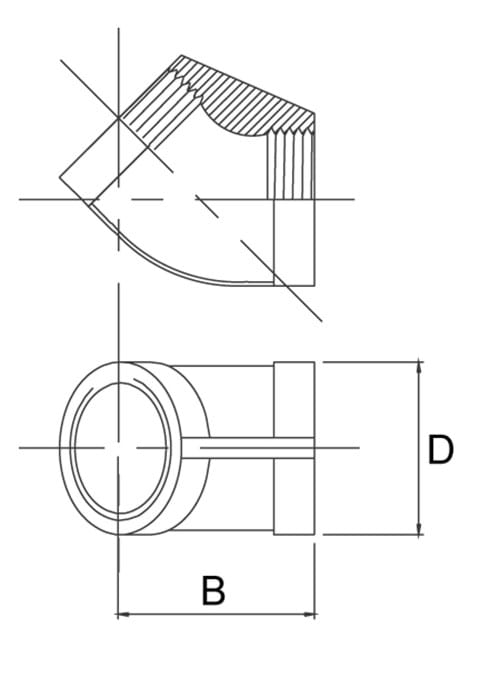

Elbow 45°, stainless AISI 316
Made of stainless steel AISI 316.
Pressure stage 10 bar.
Download data sheet
Product number
Nominal dim.
inch
Length B
mm
D Dia.
mm.
Net weight
kg.
Base unit
0100229020
1/8"
26,0
16,0
0,035
PCS
0100229060
1/4"
28,0
19,0
0,035
PCS
0100229080
3/8"
31,0
22,5
0,045
PCS
0100229100
1/2"
35,0
29,0
0,080
PCS
0100229130
3/4"
41,0
34,0
0,125
PCS
0100229150
1"
48,0
42,0
0,200
PCS
0100229170
1 1/4"
55,0
52,0
0,300
PCS
0100229190
1 1/2"
60,0
59,0
0,380
PCS
0100229230
2"
68,0
72,0
0,570
PCS
0100229250
2 1/2"
89,0
89,5
1,020
PCS
0100229270
3"
103,0
104,5
1,080
PCS
