  5. Elbow 90°, male/female, stainless AISI 316
010535B Vinkel, muffe-nippel.png zoom-icon

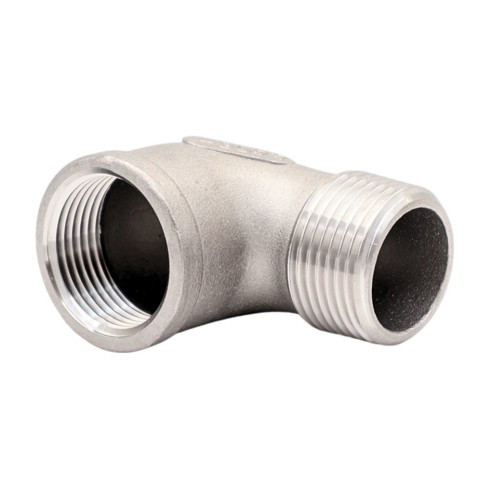

Elbow 90°, male/female, stainless AISI 316

Made of stainless steel AISI 316.

Pressure stage 150 lbs/10 bar.

Download data sheet

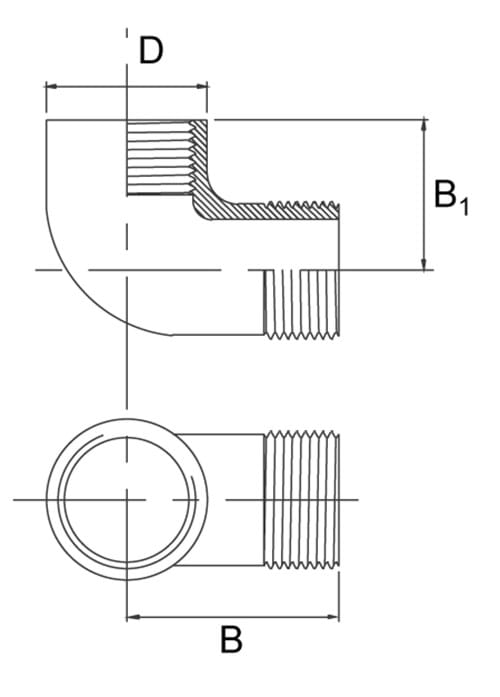

Product number Nominal dim.
inch 		Length B
mm 		Length B1
mm. 		D Dia.
mm. 		Net weight
kg. 		Base unit
0100219020
1/8"
26,5
19,0
15,0
0,021
PCS
0100219060
1/4"
30,8
21,5
18,2
0,035
PCS
0100219080
3/8"
36,5
24,5
22,5
0,045
PCS
0100219100
1/2"
41,0
29,0
28,0
0,080
PCS
0100219130
3/4"
48,0
33,5
33,5
0,125
PCS
0100219150
1"
55,5
38,0
43,0
0,205
PCS
0100219170
1 1/4"
62,0
43,0
52,0
0,355
PCS
0100219190
1 1/2"
68,0
47,0
59,0
0,420
PCS
0100219230
2"
77,5
57,5
72,0
0,600
PCS
0100219250
2 1/2"
93,0
66,0
87,0
1,445
PCS
0100219270
3"
109,0
74,0
101,0
1,530
PCS
