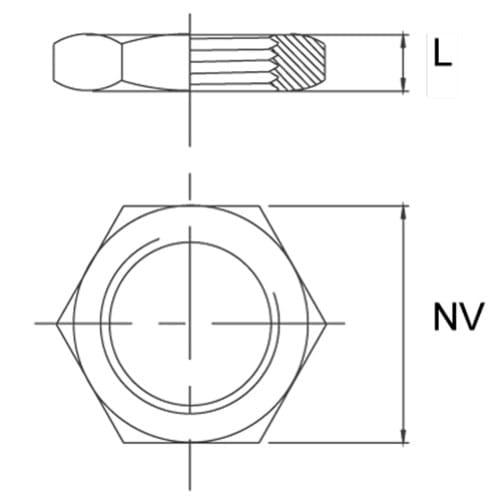

Hexagon nut, stainless AISI 316

Made of stainless steel AISI 316.

Pressure stage 10 bar.

Product number Nominal dim.
inch
Length L
mm.
Key width NV
mm.
Net weight
kg.
Base unit
0100149020
1/8"
7,0
16,0
0,010
PCS
0100149060
1/4"
7,0
18,0
0,010
PCS
0100149080
3/8"
7,0
24,0
0,020
PCS
0100149100
1/2"
8,0
30,0
0,024
PCS
0100149130
3/4"
9,0
35,0
0,035
PCS
0100149150
1"
9,0
43,0
0,050
PCS
0100149170
1 1/4"
11,0
52,0
0,085
PCS
0100149190
1 1/2"
12,0
58,0
0,100
PCS
0100149230
2"
13,0
72,0
0,160
PCS
0100149250
2 1/2"
15,0
89,0
0,360
PCS
0100149270
3"
17,0
102,0
0,514
PCS
