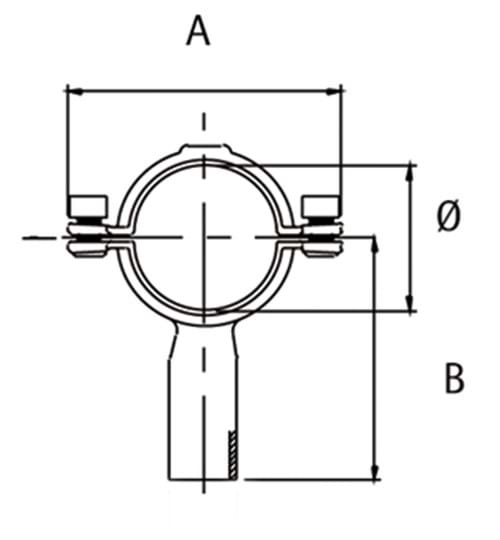

Pipeclip with shaft, Allen bolts

Delivered with welding base and two Allen screws.

Made of stainless steel AISI 304.

Download data sheet

Item number	Nominal dim. inch	Width A mm	Length B mm	ID Ø dia. mm.	Shaft D dia. mm	Net weight kg.
0102060010	1/8"	60,0	55,0	10,2	8,0	0,120
0102060013	1/4"	62,0	57,0	13,5	8,0	0,130
0102060017	3/8"	68,0	59,0	17,2	8,0	0,180
0102060021	1/2"	72,0	90,0	21,3	21,3	0,210
0102060027	3/4"	80,0	90,0	26,9	21,3	0,220
0102060034	1"	87,0	90,0	33,7	21,3	0,230
0102060042	1 1/4"	96,0	90,0	42,4	21,3	0,250
0102060048	1 1/2"	101,0	90,0	48,3	21,3	0,260
0102060060	2"	113,0	90,0	60,3	21,3	0,280
0102060089	3"	143,0	90,0	88,9	21,3	0,330
0102060114	4"	167,0	107,0	114,3	21,3	0,420
0102060140	5"	193,0	120,0	139,7	21,3	0,450

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
