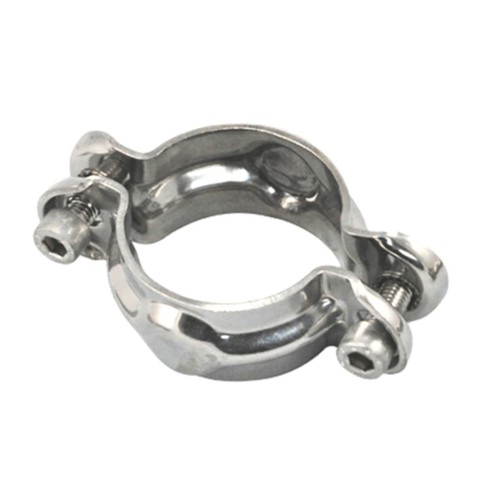

Pipeclip without shaft, Allen bolts, stainless AISI 304
Made of stainless steel AISI 304.
Delivered without base and with two Allen screws.
Download productsheet
Product number
Nominal dim.
inch
ID Ø dia.
mm.

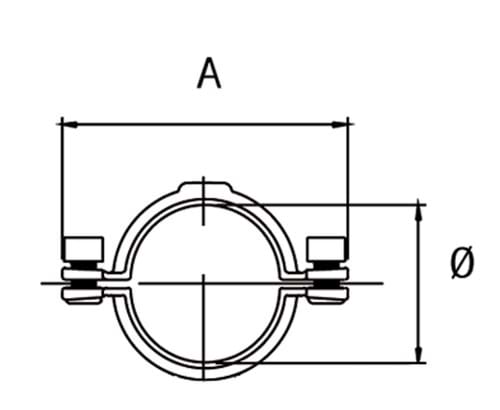

Width A
mm
Net weight
kg.
Base unit
0102070017
3/8"
17,2
68,0
0,018
PCS
0102070021
1/2"
21,3
72,0
0,150
PCS
0102070048
1½"
48,3
101,0
0,20
PCS
0102070060
2"
60,3
113,0
0,230
PCS
0102070076
2½"
76,1
129,0
0,27
PCS
0102070089
3"
88,9
143,0
0,300
PCS
0102070219
-
219,1
272,0
0,590
PCS
