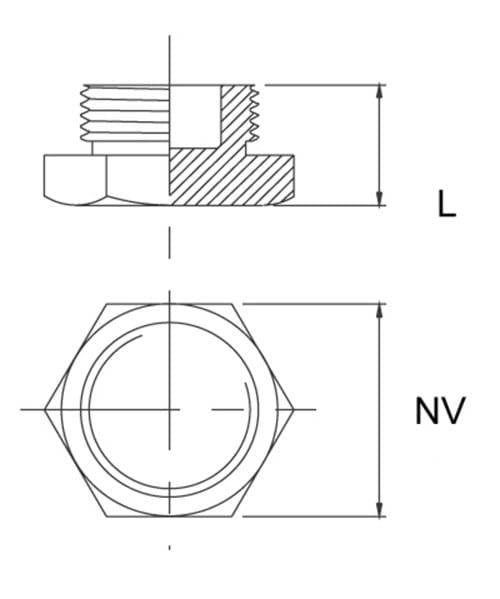

Plug, hexagon, stainless AISI 316

Made of stainless steel AISI 316.

Pressure stage 10 bar.

Download productsheet
Product number Nominal dim.
inch 		Length L
mm. 		Key width NV
mm. 		Net weight
kg. 		Base unit
0100119020
1/8"
16,0
15,0
0,013
PCS
0100119060
1/4"
18,0
17,0
0,025
PCS
0100119080
3/8"
20,0
21,0
0,035
PCS
0100119100
1/2"
22,0
25,0
0,058
PCS
0100119130
3/4"
24,0
31,0
0,112
PCS
0100119150
1"
27,0
38,0
0,214
PCS
0100119170
1 1/4"
31,0
46,0
0,378
PCS
0100119190
1 1/2"
32,0
52,0
0,508
PCS
0100119230
2"
35,0
64,0
0,894
PCS
0100119250
2 1/2"
43,0
79,0
1,300
PCS
0100119270
3"
45,0
93,0
1,560
PCS
0100119290
4"
48
120,0
1,11
PCS
