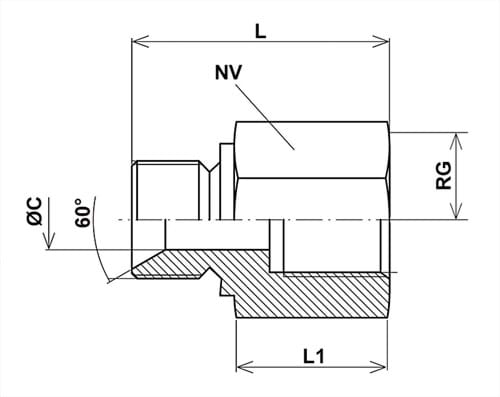

Reducing bushing, 60 degrees at one end, stainless AISI 316
Made of stainless steel AISI 316.
Pressure stage 10 bar.
Download data sheet
Product number
Nominal dim.
inch
Connection
RG
Length L
mm.
Key width NV
mm.
Installation dim. L1
mm.
C dia.
mm.
Base unit
0492379020
1/8"
1/8"
28,5
17,0
18,0
5,0
PCS
0492379060
1/4"
1/4"
34,0
19,0
21,0
4,7
PCS
0492379080
3/8"
3/8"
31,0
22,0
17,0
7,9
PCS
0492379100
1/2"
1/2"
41,5
27,0
24,0
11,1
PCS
0492379130
3/4"
3/4"
44,5
36,0
26,5
16,7
PCS
0492379150
1"
1"
50,5
41,0
28,5
22,0
PCS
0492379170
1 1/4"
1 1/4"
55,0
50,0
32,0
28,6
PCS
0492379190
1 1/2"
1 1/2"
64,5
55,0
40,0
33,3
PCS
0492379230
2"
2"
68,0
70,0
40,0
46,0
PCS
