  5. Reducing bushing, negative, 60 degrees at one end, stainless AISI 316
Reduktionsippelmuffe, 60gr i en ende_400x400px.png zoom-icon

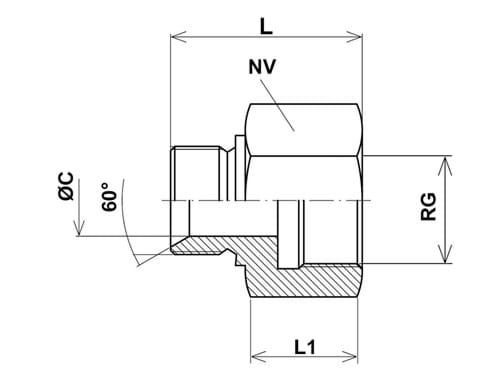

Reducing bushing, negative, 60 degrees at one end, stainless AISI 316

Made of stainless steel AISI 316.

Pressure stage 10 bar.

Download productsheet
Product number Nominal dim.
inch 		Connection
RG 		Length L
mm. 		Key width NV
mm. 		Installation dim. L1
mm. 		C dia.
mm. 		Base unit
0492369060
1/4"
1/2"
38,0
27,0
25,0
4,7
PCS
0492369080
3/8"
1/2"
39,0
27,0
28,0
7,9
PCS
0492369100
1/2"
3/4"
45,5
32
28,0
11,0
PCS
0492369130
3/4"
3/8"
40,0
27,0
22,0
15,4
PCS
0492369131
3/4"
1/2"
40,0
32,0
22,0
16,0
PCS
0492369132
3/4"
1"
46,5
41
28,5
16,0
PCS
0492369152
1"
1½"
59,5
55
40,0
22,2
PCS
0492369190
1½"
2"
65,0
70
40,0
33,0
PCS
0492369230
2"
1 1/2"
68,0
70,0
40,0
46,0
PCS
