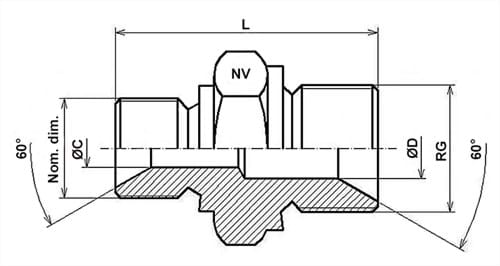

Reducing nipple, hexagon, 60 x 60 degrees, stainless AISI 316

Hexagon nipple, reduced with 60 x 60 degree cone.

Made of stainless steel AISI 316.

Pressure stage 10 bar.

Product number Nominal dim.
inch
Connection
RG
Length L
mm.
Key width NV
mm.
C dia.
mm.
D dia.
mm.
Base unit
0492319060
1/4"
1/8"
28,0
19,0
3,5
4,7
PCS
0492319080
3/8"
1/4"
34,5
22,0
5,0
8,0
PCS
0492319081
3/8"
1/8"
30,5
22,0
3,5
8,0
PCS
0492319100
1/2"
3/8"
40,0
27,0
8,0
11,0
PCS
0492319101
1/2"
1/4"
38,5
27,0
5,0
11,0
PCS
0492319130
3/4"
1/2"
44,0
32,0
11,0
16,0
PCS
0492319131
3/4"
3/8"
41,0
32,0
8,0
16,0
PCS
0492319132
3/4"
1/4"
39,5
32,0
4,7
16,7
PCS
0492319150
1"
3/4"
50,5
41,0
16,0
22,0
PCS
0492319151
1"
1/2"
49,5
41,0
11,0
22,0
PCS
0492319170
1 1/4"
1"
56,0
50,0
22,0
28,0
PCS
Product number Nominal dim.
inch
Connection
RG
Length L
mm.
Key width NV
mm.
C dia.
mm.
D dia.
mm.
Base unit
0492319171
1 1/4"
3/4"
52,5
50,0
16,0
28,0
PCS
0492319190
1 1/2"
1 1/4"
61,0
55,0
28,0
33,0
PCS
0492319191
1 1/2"
1"
59,0
55,0
22,0
33,0
PCS
0492319230
2"
1 1/2"
65,5
65,0
33,0
45,0
PCS
0492319231
2"
1 1/4"
64,0
65,0
28,0
45,0
PCS
