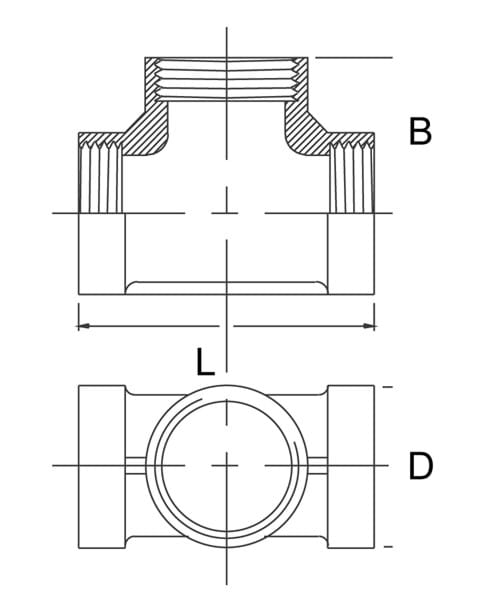

Tee, stainless AISI 316
Made of stainless steel AISI 316.
Pressure stage 10 bar.
Download productsheet
Product number
Nominal dim.
inch
Bredde D mm.
Length L
mm.
Net weight
kg.
Base unit
Height B
mm
0100049020
1/8"
16,0
30,5
0,037
PCS
18,0
0100049060
1/4"
19,0
39,0
0,048
PCS
20,0
0100049080
3/8"
22,5
46,0
0,063
PCS
23,5
0100049100
1/2"
29,0
56,0
0,110
PCS
28,0
0100049130
3/4"
34,0
65,0
0,140
PCS
32,0
0100049150
1"
41,5
72,0
0,240
PCS
36,0
0100049170
1 1/4"
52,0
92,0
0,350
PCS
47,0
0100049190
1 1/2"
59,0
97,0
0,430
PCS
48,5
0100049230
2"
72,0
115,0
0,620
PCS
57,0
0100049250
2 1/2"
88,0
131,0
1,200
PCS
66,0
0100049270
3"
105,0
146,5
1,600
PCS
74,0
