  5. Union, male/female, conical, stainless AISI 316
010565B Tipunion, konisk tætning.png zoom-icon

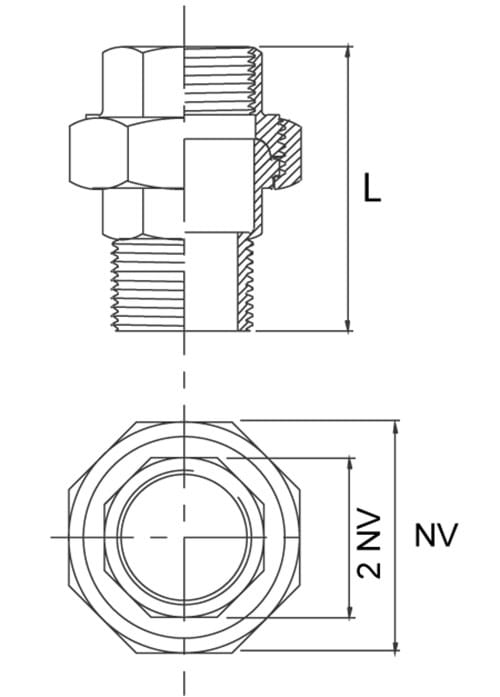

Union, male/female, conical, stainless AISI 316

Made of stainless steel AISI 316.

Pressure stage 10 bar.

Download productsheet
Product number Nominal dim.
inch 		Length L
mm. 		Key width NV
mm. 		Key width 2 nut
mm 		Net weight
kg. 		Base unit
0100209020
1/8"
51,0
29,0
18,0
0,090
PCS
0100209060
1/4"
51,0
29,0
18,0
0,090
PCS
0100209080
3/8"
53,0
35,0
22,0
0,127
PCS
0100209100
1/2"
53,0
40,0
27,0
0,170
PCS
0100209130
3/4"
60,0
46,0
31,0
0,230
PCS
0100209150
1"
66,0
55,0
38,0
0,340
PCS
0100209170
1 1/4"
74,0
66,0
49,0
0,480
PCS
0100209190
1 1/2"
76,0
74,0
55,0
0,600
PCS
0100209230
2"
83,0
86,0
67,0
1,015
PCS
0100209250
2 1/2"
92,0
106,0
83,0
1,420
PCS
0100209270
3"
104,0
124,0
97,0
2,010
PCS
