Male connector, male BSP thread, stainless AISI 316

Application:

Used for compressed air, water, oil, and chemical products.

Construction:

Made of stainless steel AISI 316.

Download data sheet

Technical specifications

Pressure:

Working pressure at 20°C, 6-15 mm for 250 bar, 18-22 mm for 160 bar.

Temperature:

The temperature ranges from -60°C to +400°C.

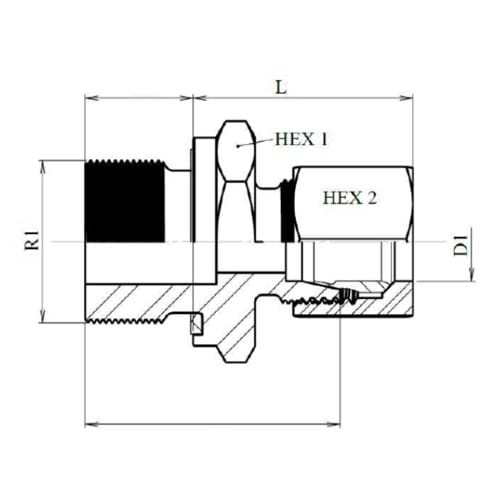

Product number	Nominal dim. inch	Pipe dim. 1 mm.	Length L mm.	Working pressure bar	Key width HEX1 mm.	Key width nut HEX2 mm	Net weight kg.	Base unit
0100659020	1/8"	6,0	23,5	315,0	14,0	14,0	0,020	PCS
0100659021	1/8"	8,0	24,5	315,0	14,0	17,0	0,030	PCS
0100659022	1/8"	10,0	25,5	315,0	17,0	19,30	0,040	PCS
0100659040	1/4"	6,0	29,0	315,0	19,0	14,0	0,030	PCS
0100659041A	1/4"	8,0	29,0	315,0	19,0	17,0	0,035	PCS
0100659042	1/4"	10,0	30,0	315,0	19,0	19,0	0,050	PCS
0100659043	1/4"	12,0	31,0	315,0	19,0	22,0	0,086	PCS
0100659080	3/8"	6,0	30,5	315,0	22,0	14,0	0,048	PCS
0100659081	3/8"	8,0	30,5	315,0	22,0	17,0	0,052	PCS
0100659082	3/8"	10,0	31,5	315,0	22,0	19,0	0,070	PCS
0100659083	3/8"	12,0	31,5	315,0	22,0	22,0	0,088	PCS
Product number	Nominal dim. inch	Pipe dim. 1 mm.	Length L mm.	Working pressure bar	Key width HEX1 mm.	Key width nut HEX2 mm	Net weight kg.	Base unit
0100659084	3/8"	15,0	32,5	315,0	24,0	27,0	0,096	PCS
0100659085	3/8"	22,0	35,5	160,0	0		0,098	PCS
0100659100	1/2"	8,0	33,0	315,0	27,0	17,0	0,090	PCS
0100659101	1/2"	10,0	34,0	315,0	27,0	19,0	0,090	PCS
0100659102	1/2"	12,0	34,0	315,0	27,0	22,0	0,100	PCS
0100659103	1/2"	15,0	35,0	315,0	27,0	27,0	0,104	PCS
0100659104	1/2"	18,0	36,0	315,0	27,0	32,0	0,106	PCS
0100659105	1/2"	22,0	38,0	630,0	32,0	36,0	0,144	PCS
0100659130	3/4"	15,0	38,0	315,0	32,0	27,0	0,100	PCS
0100659131	3/4"	22,0	40,0	630,0	32,0	36,0	0,144	PCS
Product number	Nominal dim. inch	Pipe dim. 1 mm.	Length L mm.	Working pressure bar	Key width HEX1 mm.	Key width nut HEX2 mm	Net weight kg.	Base unit
0100659132	3/4"	18,0	38,0	315,0	32,0	32,0	0,120	PCS
0100659133	3/4"	28,0	41,0	630,0	41,0	41,0	0,145	PCS
0100659150	1"	22,0	43,0	630,0	41,0	36,0	0,150	PCS
0100659151	1"	28,0	43,0	630,0	41,0	41,0	0,155	PCS
0100659170	1 1/4"	35	48,0	630,0	50,0	50,0	0,160	PCS
0100659171	1 1/4"	42,0	0	630,0	0		0	PCS
0100659190	1 1/2"	35,0	0	630,0	0		0	PCS
0100659191	1 1/2"	42,0	52,0	630,0	55,0	60,0	0,180	PCS
