T-Union, DIN 2353, stainless AISI 316L

Application:

Used for compressed air, water, oil, and chemical products.

Construction:

Made of stainless steel AISI 316L, DIN 2353.

Technical specifications

Pressure:

Working pressure at 20°C, 6-15 mm for 250 bar, 18-22 mm for 160 bar.

Temperature:

The temperature ranges from -60°C to +400°C.

Product number Pipe dim. 1
mm.

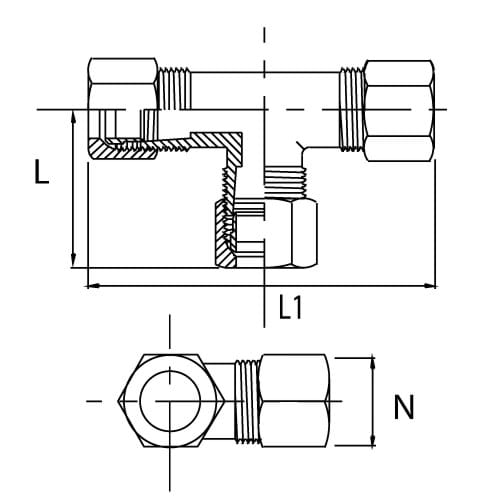

Installation dim. L
mm.
Installation dim. L1
mm.
Key width nut
mm
Working pressure
bar
Net weight
kg.
Base unit
0100640006
6,0
27,0
54,0
14,0
100,0
0,050
PCS
0100640008
8,0
29,0
58,0
17,0
100,0
0,075
PCS
0100640010
10,0
30,0
60,0
19,0
315,0
0,110
PCS
0100640012
12,0
32,0
64,0
22,0
315,0
0,190
PCS
0100640015
15,0
36,0
72,0
27,0
315,0
0,225
PCS
0100640018
18,0
40,0
80,0
32,0
315,0
0,320
PCS
0100640022
22,0
44,0
88,0
36,0
160,0
0,350
PCS
0100640028
28,0
47,0
30,5
41,0
160,0
-
PCS
0100640035
35,0
56,0
34,5
50,0
160,0
-
PCS
0100640042
42,0
63,0
40,0
60,0
160,0
-
PCS
