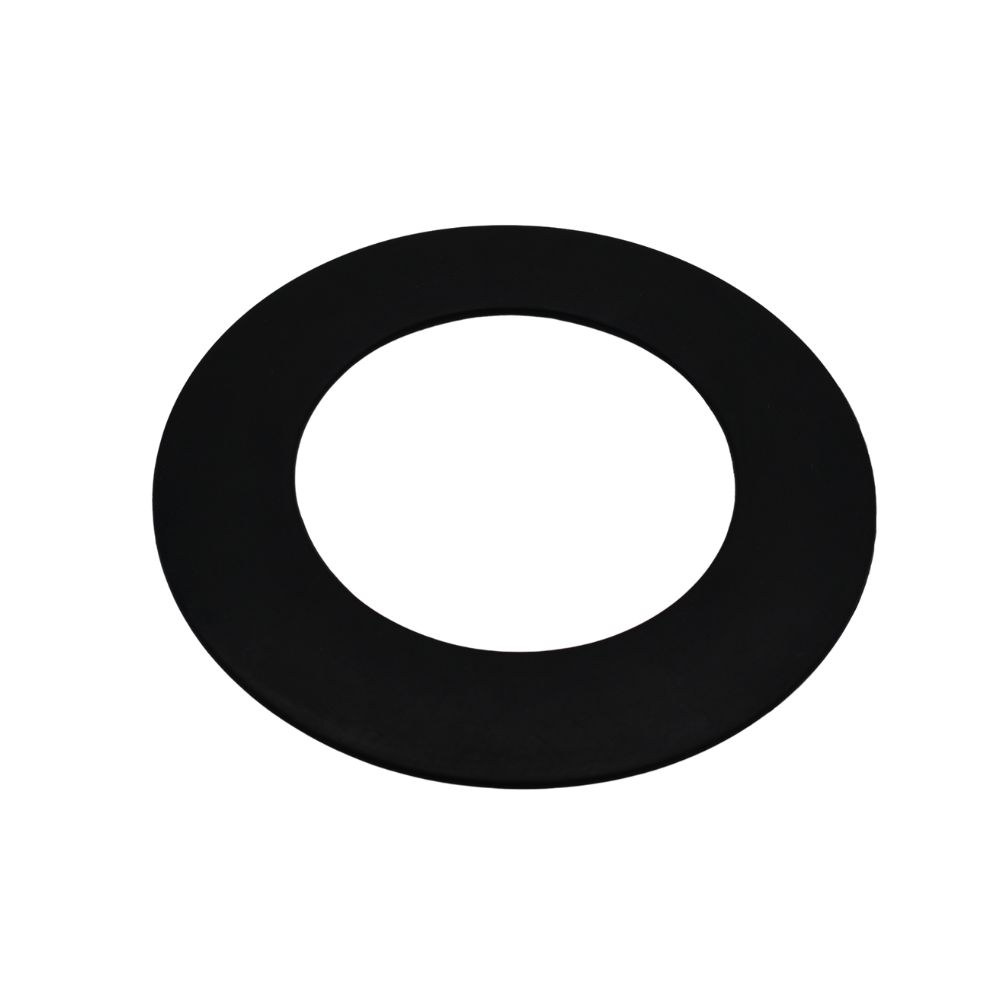

Flange gasket, DIN

Application:

Gasket for use in flanges.

Temperature:

Temperature range from -30°C to +120°C.

Construction:

Made of EPDM.

Download data sheet
Item number Nom. dim. - DN ID Ø dia.
mm.		 OD Ø dia.
mm.		 Tykkelse - Ø mm. Elastomer
type		 Base unit Quantity
0394806102740 20 27,0 61,0 4,0 EPDM PCS
0394807003540 25 35,0 70,0 4,0 EPDM PCS
0394808204340 82,0 43,0 82,0 4,0 EPDM PCS
0394809204940 40 49,0 92,0 4,0 EPDM PCS
0394810761940 50 61,0 107,0 4,0 EPDM PCS
0394812707740 65 77,0 127,0 4,0 EPDM PCS
0394814208940 80 89,0 142,0 4,0 EPDM PCS
0394816211550 100 115,0 162,0 5,0 EPDM PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
