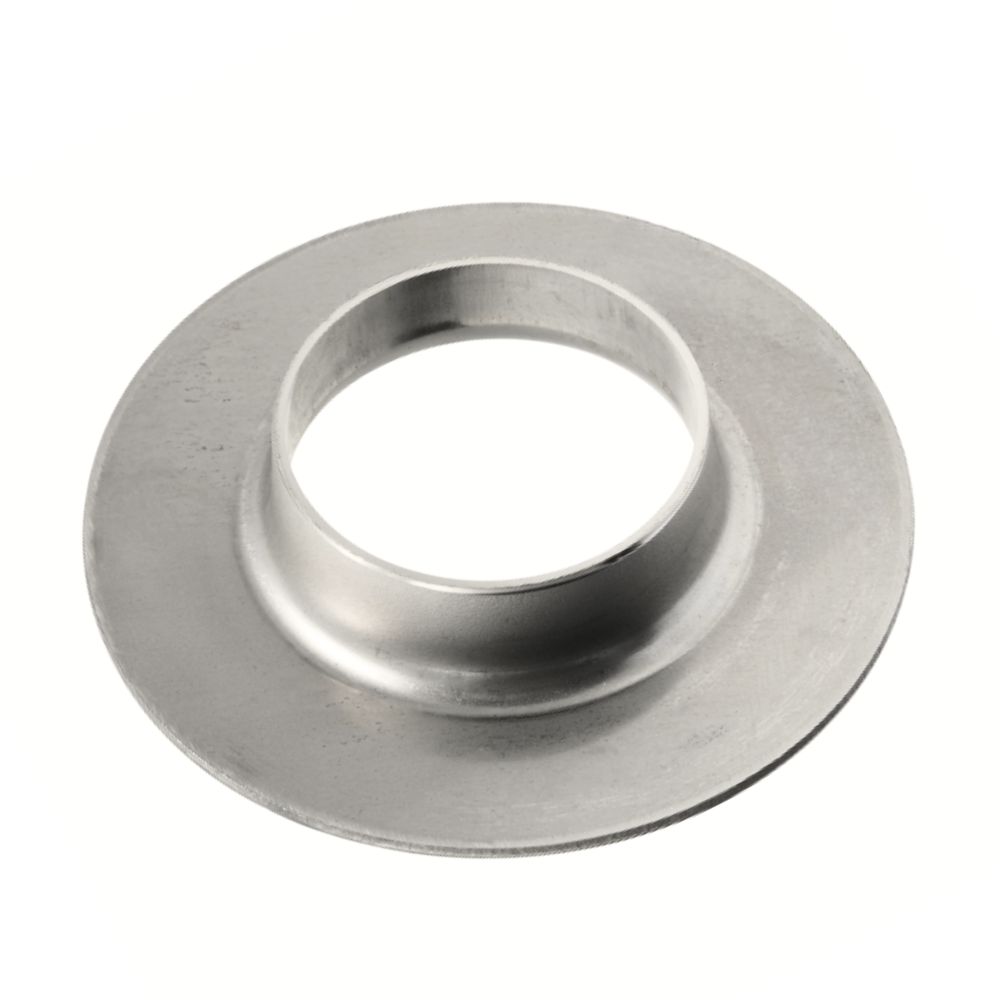

Liner, weld on, ISO - N116

Made of stainless steel AISI 316L / EN 1.4404.

Follows the standard ISO - N116.

Download data sheet

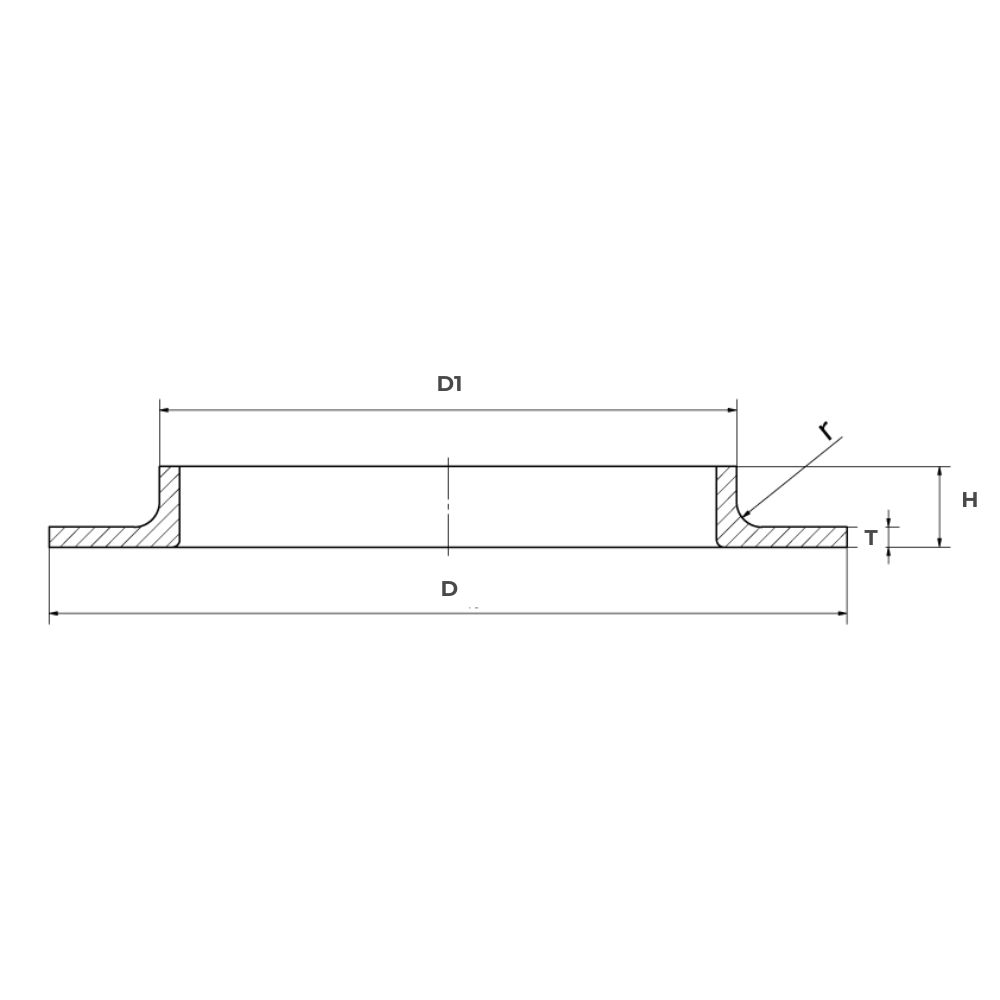

Item number Nom. dim. - DN D Dia.
mm.
D1 dia.
mm.
Radius
mm
Height - mm. Godstykkelse T - mm. Material type Base unit Quantity
0105200015 DN15 45,0 21,3 3,0 6,0 3,0 AISI 316 PCS
0105200020 DN20 58,0 26,9 3,0 8,0 3,0 AISI 316 PCS
0105200025 DN25 68,0 33,7 4,0 10,0 3,0 AISI 316 PCS
0105200032 DN32 78,0 42,4 4,0 12,0 3,0 AISI 316 PCS
0105200040 DN40 88,0 48,3 4,0 15,0 3,0 AISI 316 PCS
0105200050 DN50 102,0 60,3 5,0 18,0 3,0 AISI 316 PCS
0105200065 DN65 122,0 76,1 5,0 18,0 3,0 AISI 316 PCS
0105200080 DN80 138,0 88,9 5,0 22,0 3,0 AISI 316 PCS
0105200100 DN100 158,0 114,3 5,0 22,0 3,0 AISI 316 PCS
0105200125 DN125 188,0 139,7 5,0 22,0 3,0 AISI 316 PCS
0105200150 DN150 212,0 168,3 5,0 25,0 3,0 AISI 316 PCS
0105200200 DN200 268,0 219,1 5,0 25,0 3,0 AISI 316 PCS
0105201015 DN15 45,0 21,0 3,0 8,0 3,0 AISI 316 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
