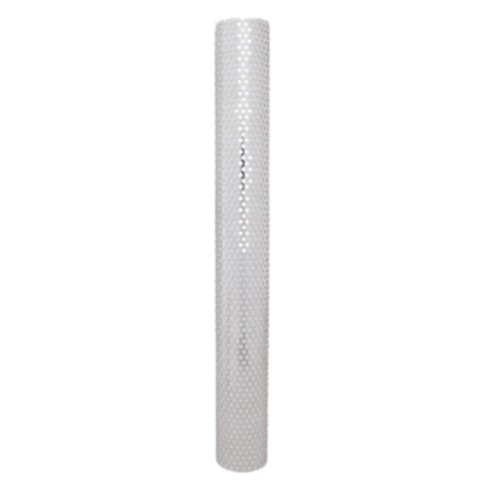

Insert for strainer, L-type, perforated

Application:

  • Filter insert for AWH dirt filter, L-type
  • With holes

Quality:

Made of stainless steel AISI 316

Download data sheet

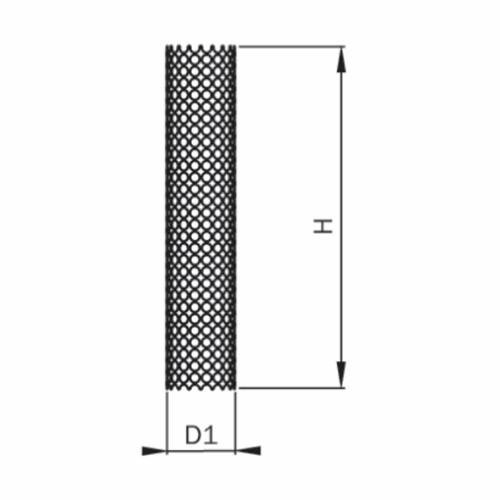

Product number Nom. dim. - DN Nominal dim.
inch 		D1 dia.
mm. 		Hole dia. mm. Height H
mm. 		Open area
cm2 		Weight/pcs.
kg. 		Base unit
0123025010
25 - 40
1" - 1½"
45,0
1,0
353,0
126,8
0,30
PCS
0123025015
25 - 40
1" - 1½"
45,0
1,5
353,0
152,7
0,30
PCS
0123025025
25 - 40
1" - 1½"
45,0
2,5
353,0
166,7
0,30
PCS
0123025080
25 - 40
1" - 1½"
45,0
8,0
353,0
191,1
0,30
PCS
0123051010
50 - 65
2" - 2½"
70,0
1,0
350,0
195,5
0,40
PCS
0123051015
50 - 65
2" - 2½"
70,0
1,5
350,0
235,5
0,40
PCS
0123051025
50 - 65
2" - 2½"
70,0
2,5
350,0
257,1
0,40
PCS
0123051080
50 - 65
2" - 2½"
70,0
8,0
350,0
294,8
0,40
PCS
0123076010
80 - 100
3" - 4"
110,0
1,0
470,0
412,6
0,80
PCS
0123076015
80 - 100
3" - 4"
110,0
1,5
470,0
497,0
0,80
PCS
0123076025
80 - 100
3" - 4"
110,0
2,5
470,0
542,5
0,80
PCS
0123076080
80 - 100
3" - 4"
110,0
8,0
470,0
622,1
0,80
PCS
