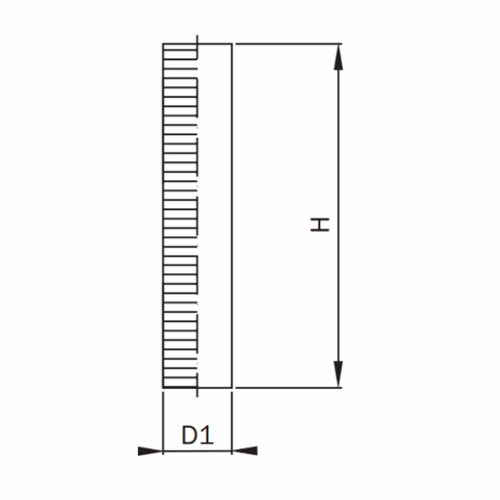

Insert for strainer, L-type, slotted

Application:

Filter insert for AWH dirt filter, L-type. With slots.

Quality:

Made of stainless steel AISI 316.

Download data sheet
Item number Nominal dim.
inch
Nom. dim. - DN D1 dia.
mm.
Height H
mm.
Column size
mm.
Open area
cm2
Weight/pcs.
kg.
Base unit Quantity
0124025005 1" - 1½" 25 - 40 45,0 353 0,5 161,0 0,50 PCS
0124025010 1" - 1½" 25 - 40 45,0 353,0 1,0 241,0 0,50 PCS
0124051003 2" - 2½" 50 - 65 70,0 350,0 0,35 126,8 0,7 PCS
0124051005 2" - 2½" 50 - 65 70,0 350,0 0,5 248,0 0,70 PCS
0124051010 2" - 2½" 50 - 65 70,0 350,0 1,0 372,0 0,70 PCS
0124076005 3" - 4" 80 - 100 110,0 470,0 0,5 527,0 1,50 PCS
0124076010 3" - 4" 80 - 100 110,0 470,0 1,0 791,0 1,50 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
