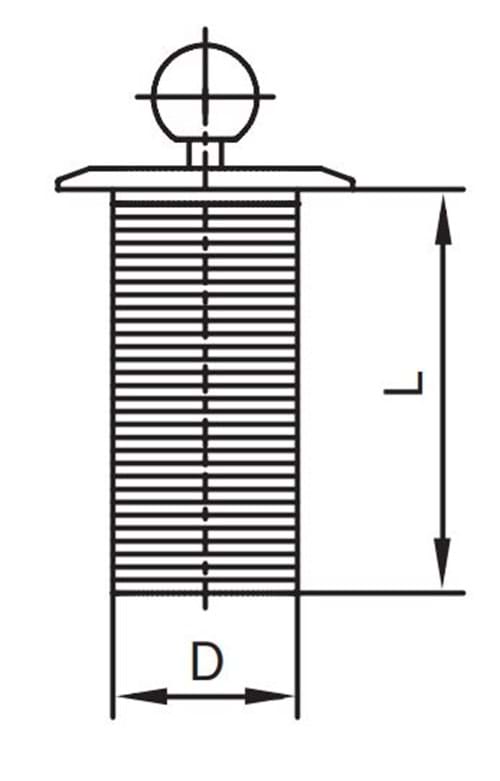

Insert for strainer, Y-type, stainless AISI 316

Application:

Filter element for dirt filter, Y-type.

Quality:

Made of stainless steel AISI 316.

KV-value: The amount of water in m3/h, at +15°C that flows through at a pressure drop of 1 bar.

Product number Nominal dim.
mm.
D Dia.
mm.
Length L
mm.
Column size
mm.
Flow at 1 bar
pressure drop m3/h
Open area
cm2
Net weight
kg.
Base unit D dia.
mm.
0121025025
25,0
38,0
100,0
0,25
13,6
21,0
0,870
PCS
0121025050
25,0
38,0
100,0
0,50
15,1
37,0
0,870
PCS
0121025100
25,0
38,0
100,0
1,00
16,7
91,0
0,870
PCS
0121040025
40 & 50
57,0
125,0
0,25
24,8 / 36,5
40,0
1,240
PCS
0121040050
40 & 50
57,0
125,0
0,50
28,6 / 43,0
71,0
1,240
PCS
0121040100
40 & 50
57,0
125,0
1,00
33,5 / 51,5
172,0
1,240
PCS
0121065025
65,0
73,0
145,0
0,25
56,2
61,0
1,560
PCS
0121065050
65,0
73,0
145,0
0,50
69,2
106,0
1,560
PCS
0121065100
65,0
73,0
145,0
1,00
86,7
257,0
1,560
PCS
0121080025
80,0
85,0
160,0
0,25
83,6
79,0
1,860
PCS
0121080050
80,0
85,0
160,0
0,50
103,1
137,0
1,860
PCS
0121080100
80,0
85,0
160,0
1,00
127,6
331,0
1,860
PCS
0121100025
100,0
110,0
185,0
0,25
127,9
119,0
2,340
PCS
0121100050
100,0
110,0
185,0
0,50
155,2
205,0
2,340
PCS
0121100100
100,0
110,0
185,0
1,00
192,3
498,0
2,340
PCS
