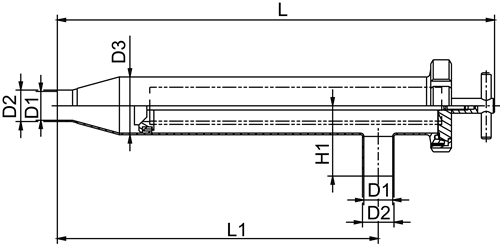

Strainer, L-type, weld on

Application:

• Suitable for coarse filtration of liquid flows of liquid media with low viscosity such as water, steam, liquid food, and beverages with high hygienic requirements
• Easy to install, require little space, and flexible to use due to the large number of different filter elements

Construction:

• Flow direction is from the outside in and with the disc filter, flow resistance is reduced by up to 75% higher flow across the filter
• Filter elements with gaps from 50 μm to 4 mm make it easy to adapt the angle filter to the specific requirements by simply switching between different filter elements
• Filter element is robustly made to withstand the pressure in the filter and can be replaced without tools up to 4”
• Clean by emptying and removing the filter element - the scraper ring cleans the filter automatically
• For complex processes, we also offer complete pipe combinations that facilitate uninterrupted operation of a screen each

Connection options:

• Standard with weld end
• Alternatively, union nut or nipples in DS, SMS, DIN, ISO Clamp, or DIN Clamp
• Other options on request

Quality:

Material:

• Material in contact with the media AISI 316L (1.4404)
• Material not in contact with the media AISI 304L (1.4307)
• Filter element AISI 316L (1.4404)

Surface:

• Internal Ra < 0,8 μm (filter and welding seams higher)
• External electropolished

Sealings:

• EPDM – FDA quality (other materials possible)

Pressure:

• Nominal working pressure 1”-4” – PN10
• Nominal working pressure 5”-6” – PN06
