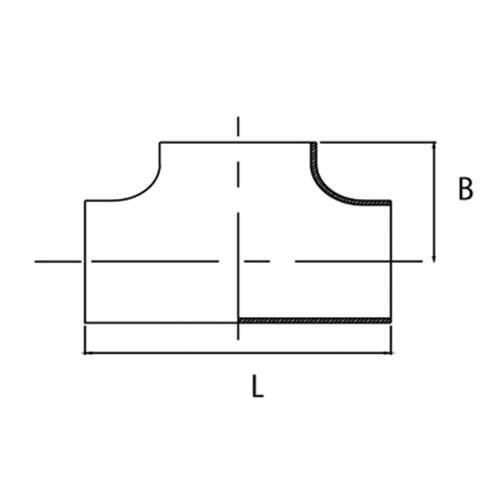

Tee, DIN tube, weld on

Made of stainless steel AISI 316.

Download data sheet
Item number Nominal dim.
mm.		 Length L
mm.		 Height B
mm		 Godstykkelse T - mm. Net weight
kg.		 Quantity
0103984139 139,7 248,0 081,0 2,6 2,79
0103984168 168,3 0 0 0 0
0103985020 20,0 50,0 25,0 2,00 0,080
0103985025 25,0 58,0 30,0 2,00 0,095
0103985030 30,0 76,0 35,0 2,00 0,100
0103985038 38,0 86,0 43,0 2,00 0,150
0103985044 44,5 114,0 50,0 2,00 0,140
0103985054 54,0 128,0 61,0 2,00 0,220
0103985069 69,0 152,0 73,0 2,00 0,380
0103985084 84,0 172,0 82,0 2,00 0,420
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
