Actuator for AWH butterfly valve, air/spring

Application:

Pneumatic actuator for the automation of butterfly valves. Suitable for use in the food, dairy and pharmaceutical industries.

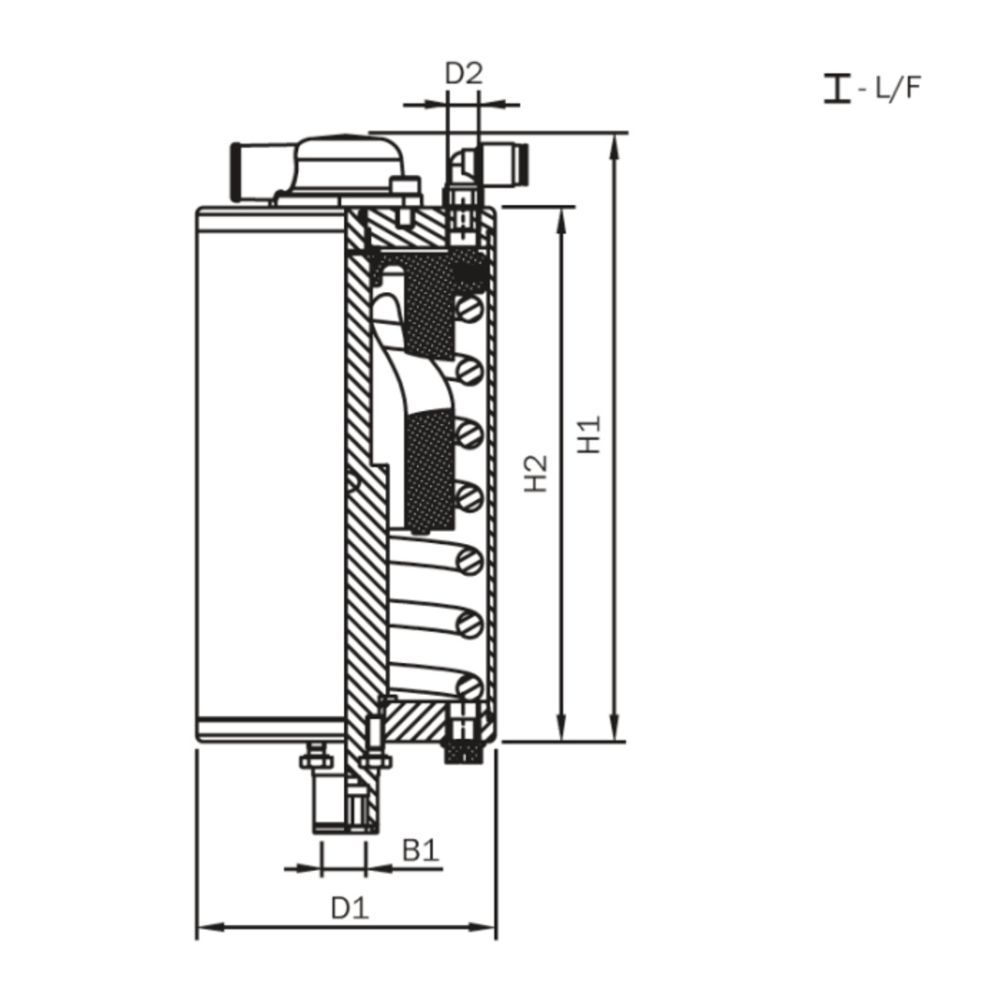

Construction:

• Single-acting air/spring function, where compressed air is used for actuation and a spring ensures automatic return.
• Built-in safety feature ensuring that the valve automatically returns to its initial position in the event of a loss of air supply.
• Hygienic design with O-ring seal.
• Integrated position indicator for visual and electrical feedback on the valve’s position.

Quality:

Made of stainless steel AISI 304L.

Operating conditions:

Working pressure: 5–10 bar.
