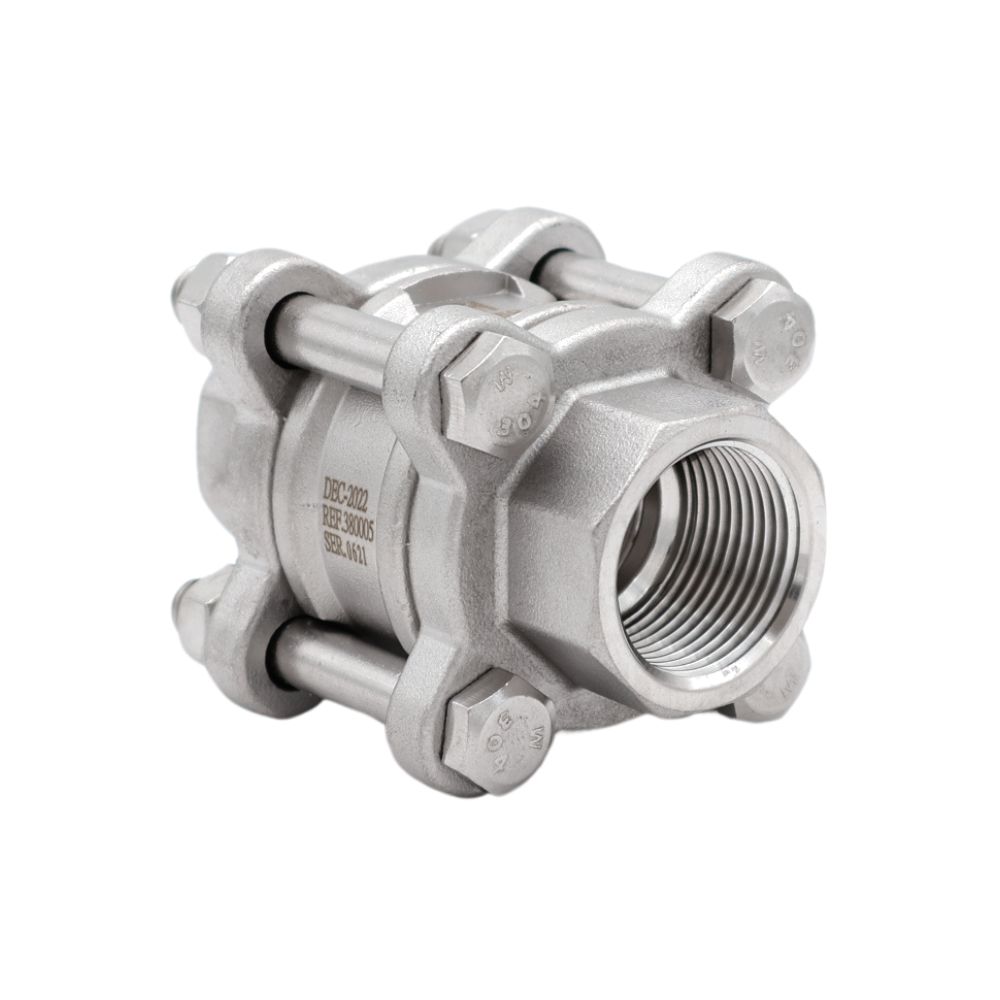

Non-return valve, 3-part

Application:

3-part non-return ball valve for stopping the return flow of liquids, including saturated steam.

Construction:

• Spring-actuated flap that allows mounting in all directions
• Smooth and easy-to-clean exterior surface
• Straight with RG sleeves
• Full passage
• Acid-proof

Quality:

Made of stainless steel AISI 316.

Operating conditions:

• The temperature ranges from -50°C to +200°C
• Pressure: Max. 70 bar
• Steam: Max. 15 bar at +180°C
