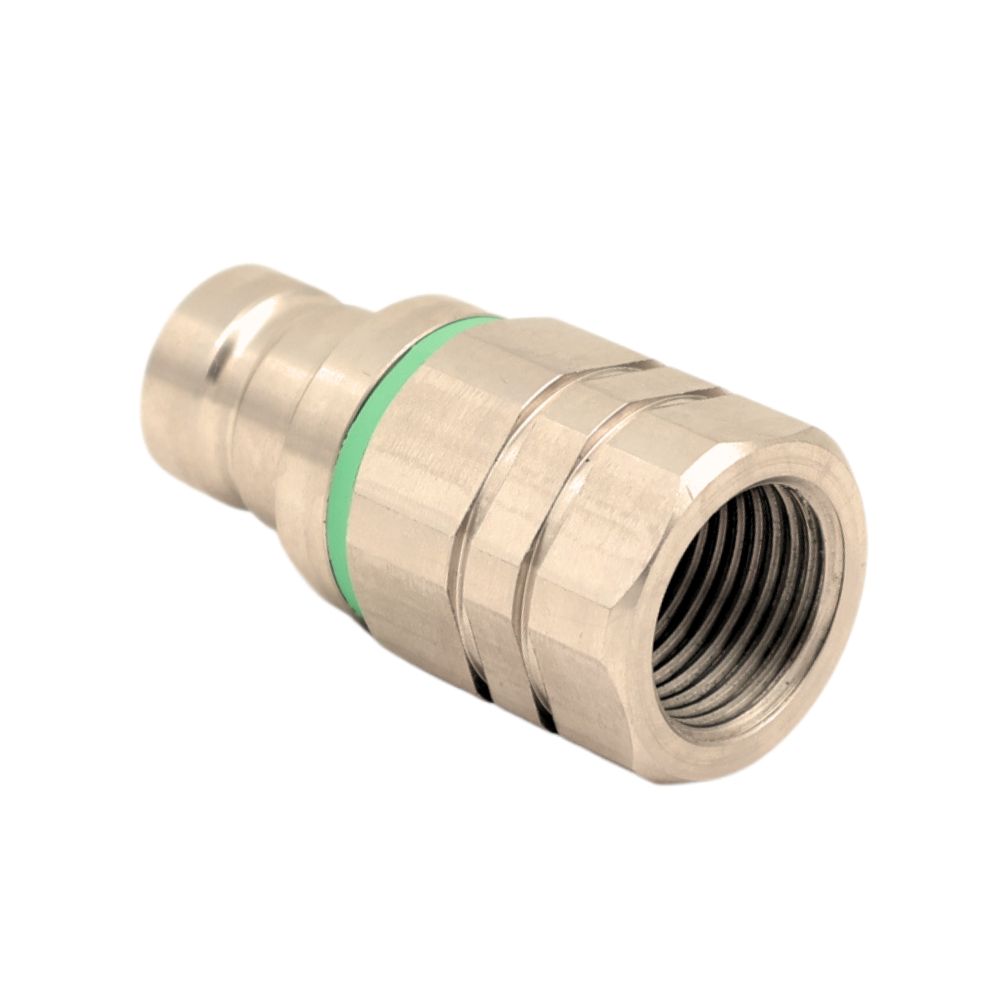

Cejn coupling nipple, nickel-plated brass

Application:

With endless combination possibilities, Cejn's range of drip-free couplings are suitable for most applications and systems. The spill-free design ensures virtually zero spillage and eliminates contamination as well as air ingress during connection and disconnection. The series is available in three configurations: Free flow, single shut-off and double shut-off.

Series 467, 647, 667 and 767 are available with color coding and/or security coding for added safety. Optional gasket material on request.

Construction:

• Precision manufactured dry-break coupling suitable for liquid cooling
• Safety lock function to prevent accidental disconnection
• One-hand operated quick coupling with compact dimensions
• Available with or without a valve

Quality:

Made of nickel-plated brass.

Pakningsmateriale i NBR.

Temperature:

Temperature range from 15 °C to +100 °C.
Max working pressure 20 bar.
Minimum burst pressure 80 bar.
