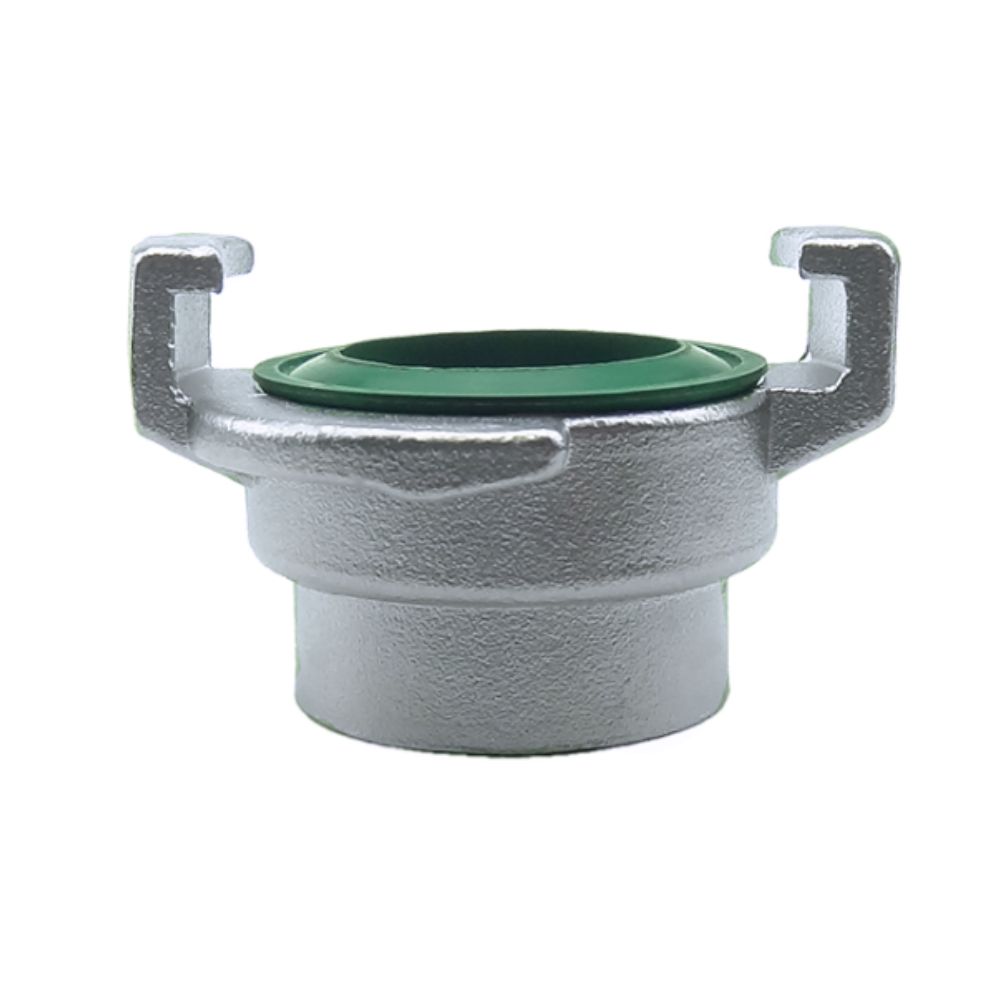

GEKA claw coupling

Application:

Universal GEKA claw coupling for water pipes, widely used in industry, construction, agriculture and civil installations. The uniform claw system makes it possible to combine different hose and pipe dimensions across the installation.

Construction:

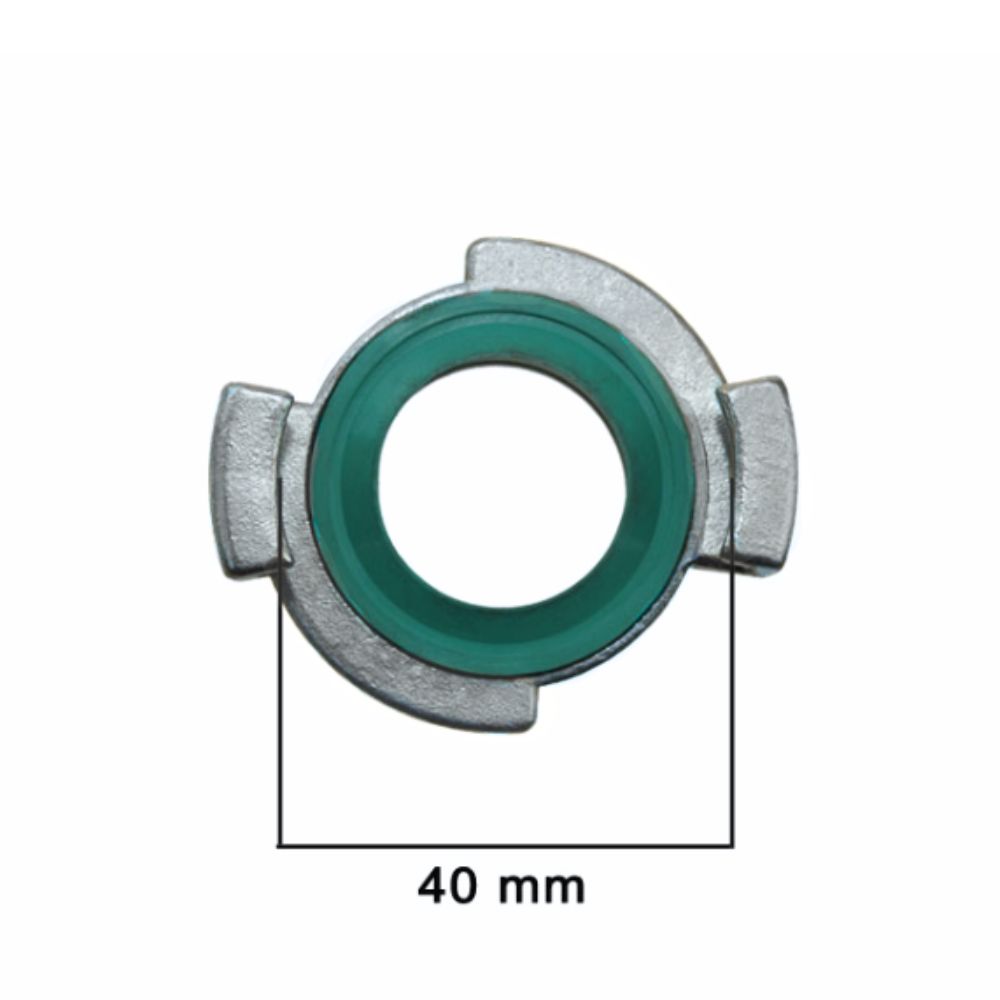

  • Jaw distance of 40 mm.
  • Equipped with internal thread.

Quality:

Stainless steel AISI 316/1.4401.

Gasket:

The gasket is supplied in FKM/FPM (green) as standard.

Working pressure:

Maximum working pressure of 10 bar.

Item number Nominal dim.
inch 		Jaw dist.
mm 		Net weight
kg. 		Material type Type Gasket type Base unit Quantity
0295009100 1/2" 40,0 0,088 Viton GEKA Viton PCS
0295009130 3/4" 40,0 0,080 Viton GEKA Viton PCS
0295009150 1" 40,0 0,092 Viton GEKA Viton PCS
0295009170 1 1/4" 40,0 0,092 Viton GEKA Viton PCS
0295009190 1 1/2" 40,0 0,099 Viton GEKA Viton PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
