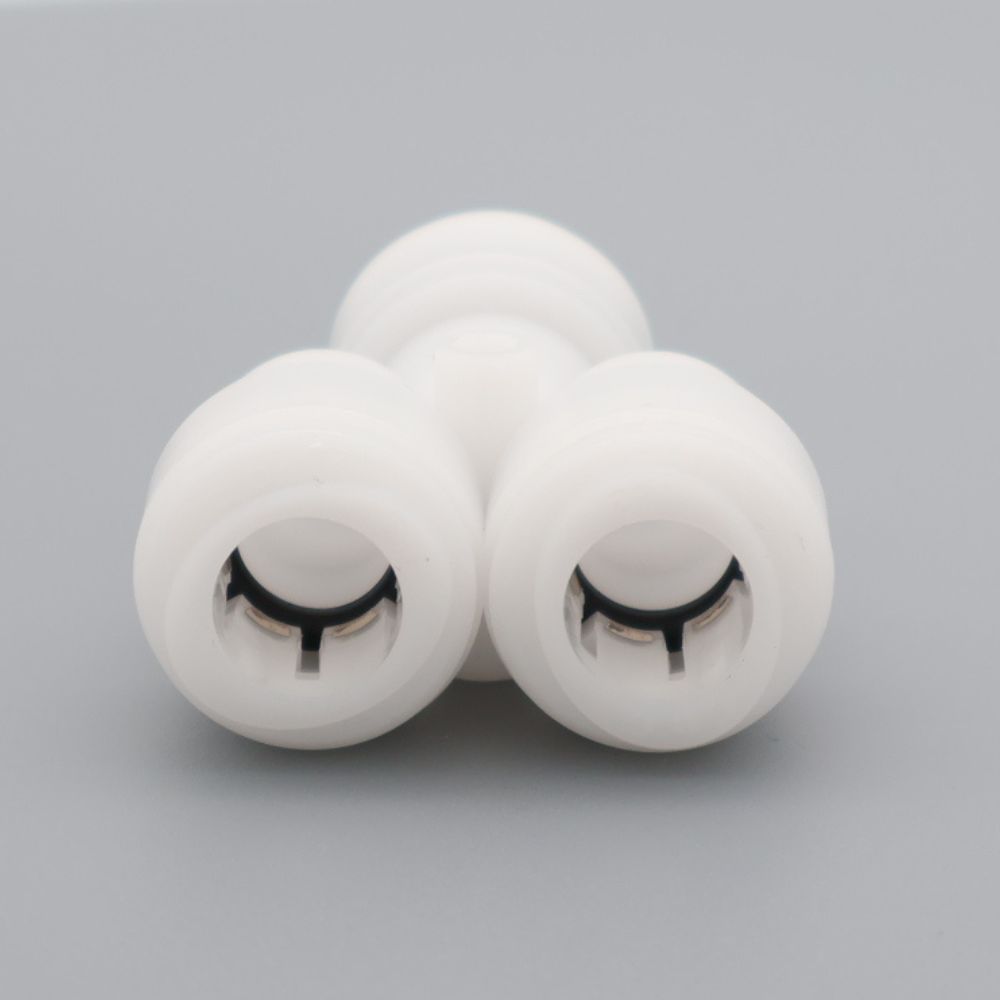

Push-in Y-union

Application:

Push-in Y-union suitable for compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

  • Made of POM
  • EPDM gasket

Standards:

EC 1935/2004.

Temperature:

The temperature ranges from +1°C to +98°C.
Working pressure 20 bar.

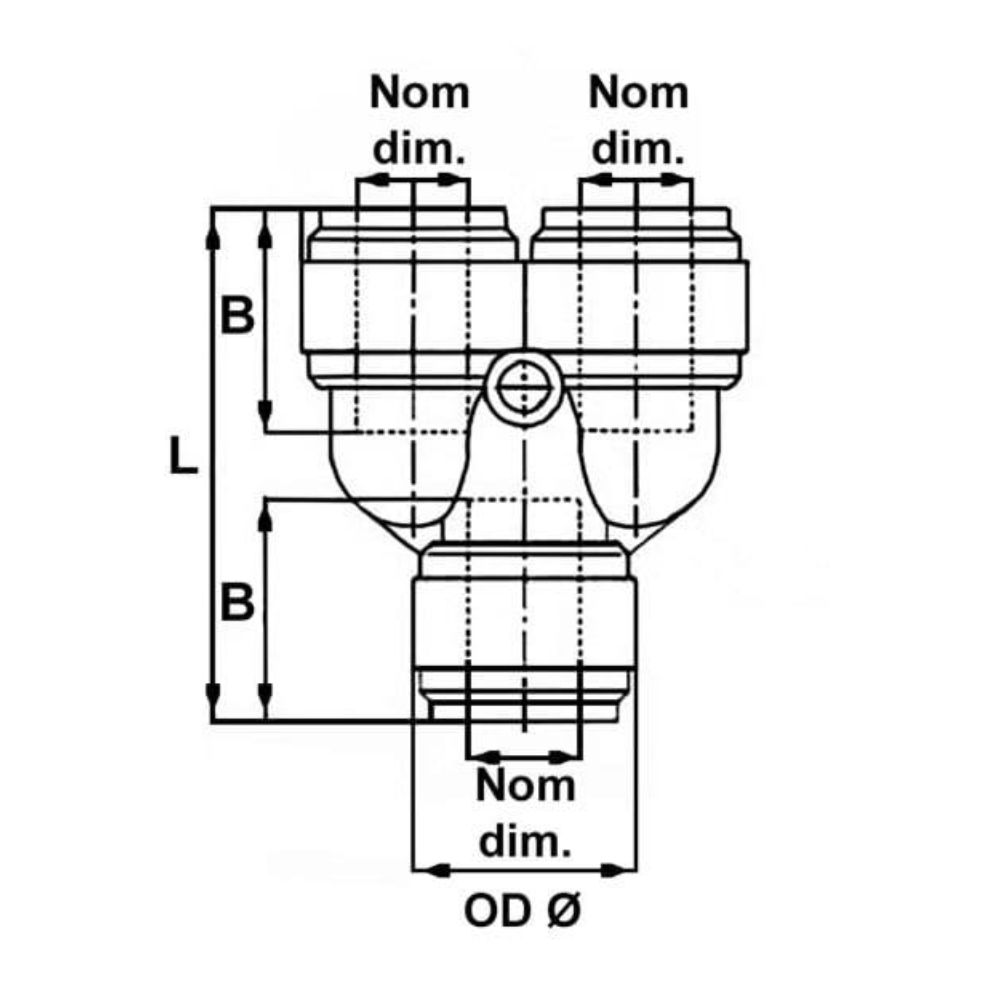

Item number Nominal dim.
mm.		 OD Ø dia.
mm.		 Length B
mm		 Length L
mm.		 Net weight
kg.		 Base unit Quantity
02791HUY0606W 6,0 15,5 16,1 38,8 0,009 PCS
02791HUY0808W 8,0 17,6 17,5 41,0 0,011 PCS
02791HUY1010W 10,0 20,0 20,1 46,2 0,016 PCS
02791HUY1212W 12,0 23,0 24,7 56,4 0,026 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
