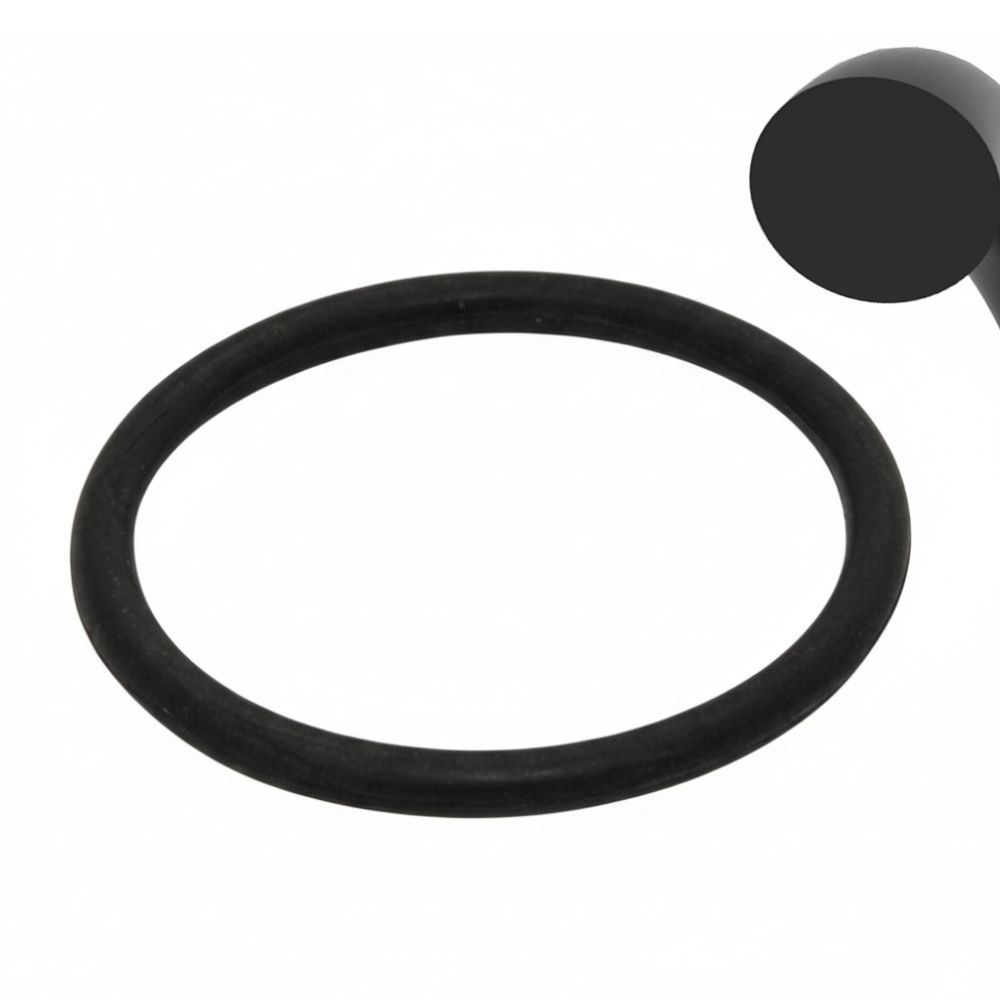

Union gasket, form A, series B

Application:

Gasket for dairy pipe unions, type DIN, aseptic.
Good resistance to many organic liquids, including acids, lye and especially CIP.
Not suitable for mineral oils and grease.

Construction:

Made of ethylene propylene diene monomer rubber, EPDM.

Standards:

Certified by FDA/USP.

Temperature:

The temperature ranges from -40°C to +150°C.

Item number	Nominal dim. mm.	ID Ø dia. mm.	OD Ø dia. mm.	Height H mm.	Elastomer type	Base unit
030321017B	17,2	16,0	23,0	3,5	EPDM	PCS
030321021B	21,3	20,0	27,0	3,5	EPDM	PCS
030321027B	26,9	26,0	33,0	3,5	EPDM	PCS
030321034B	33,7	32,0	42,0	5,0	EPDM	PCS
030321042B	42,4	40,5	50,5	5,0	EPDM	PCS
030321048B	48,8	46,5	56,5	5,0	EPDM	PCS
030321060B	60,3	58,5	68,5	5,0	EPDM	PCS
030321076B	76,1	73,5	83,5	5,0	EPDM	PCS
030321089B	88,9	86,5	96,5	5,0	EPDM	PCS
030321114B	114,3	111,0	121,0	5,0	EPDM	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
