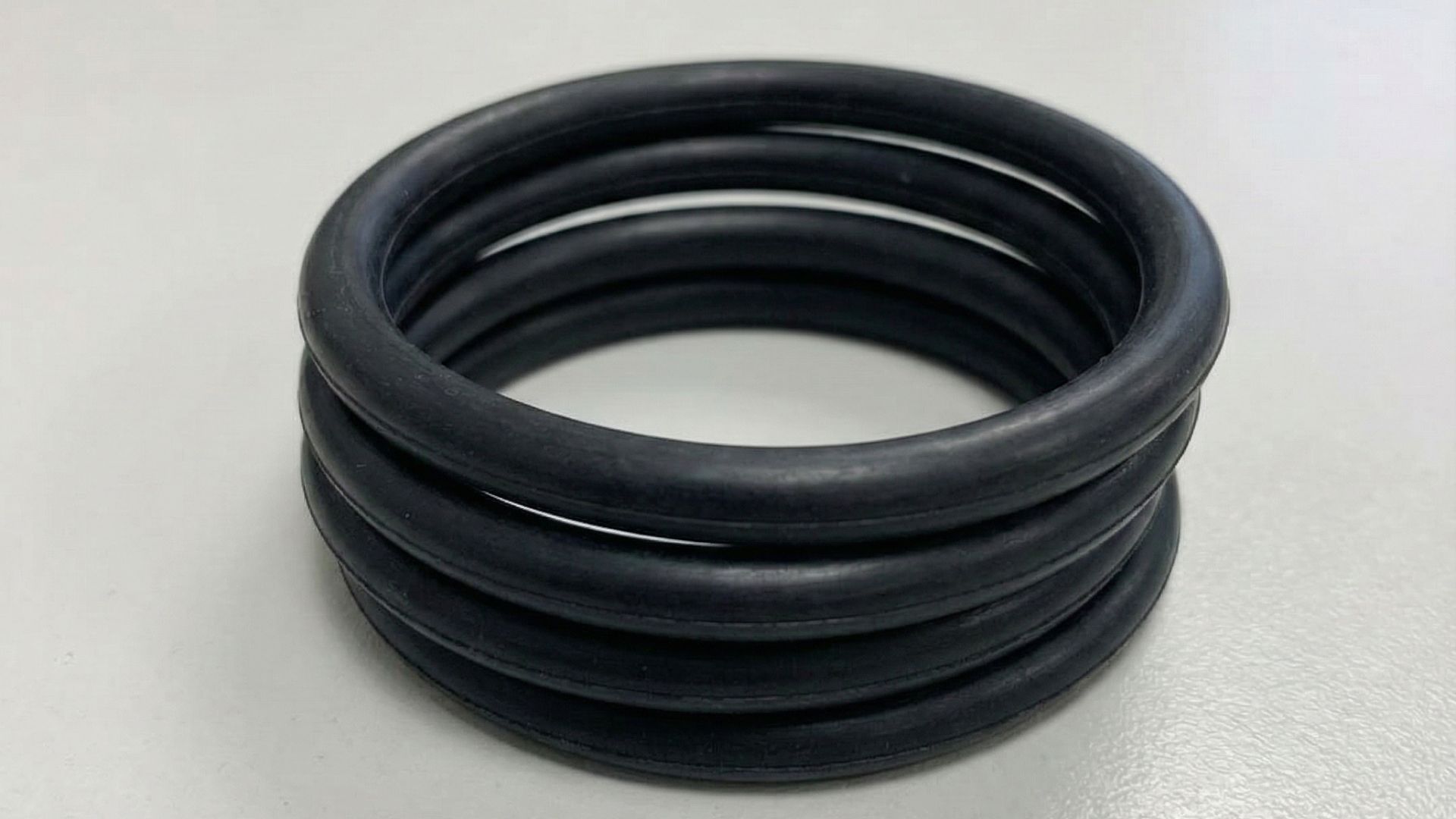

Aseptic union gaskets: Hygienic sealing in food and pharmaceutical applications

Aseptic union gaskets are specially developed seal rings that ensure a completely tight and contamination-free connection between pipes and fittings in sterile process environments. They are indispensable in plants where high demands are placed on hygiene, cleaning and operational reliability – e.g. in the production of food, pharmaceuticals and other products with strict standards for sterility and documentation. Their primary function is to withstand the stresses of CIP and SIP cleaning, temperature fluctuations and aggressive media, while maintaining their sealing performance over time.

As an integral part of the aseptic union parts, the gaskets enable easy assembly and disassembly of piping systems without compromising tightness or hygiene. This is crucial in process environments where inspection and cleaning are carried out regularly and where even minor leaks can have major consequences for production, product quality and food safety.

Our range includes aseptic union gaskets in EPDM. And that is no coincidence. EPDM is the most widely used gasket type for aseptic union parts, as it combines high flexibility, chemical resistance and temperature tolerance with a long service life.

Our EPDM union gaskets are:

• Particularly suitable for CIP and SIP cleaning systems
• Certified according to FDA/USP
• Resistant to steam, cleaning agents and heat
• Manufactured in black EPDM

Our EPDM gasket in form A, series A is designed with a pipe connection for DIN food pipes and is typically used in food companies in, for example, Germany and Eastern Europe, where this pipe standard is widespread. It meets all requirements for food contact and is a safe choice in production environments with frequent steam sterilisation and CIP cleaning.

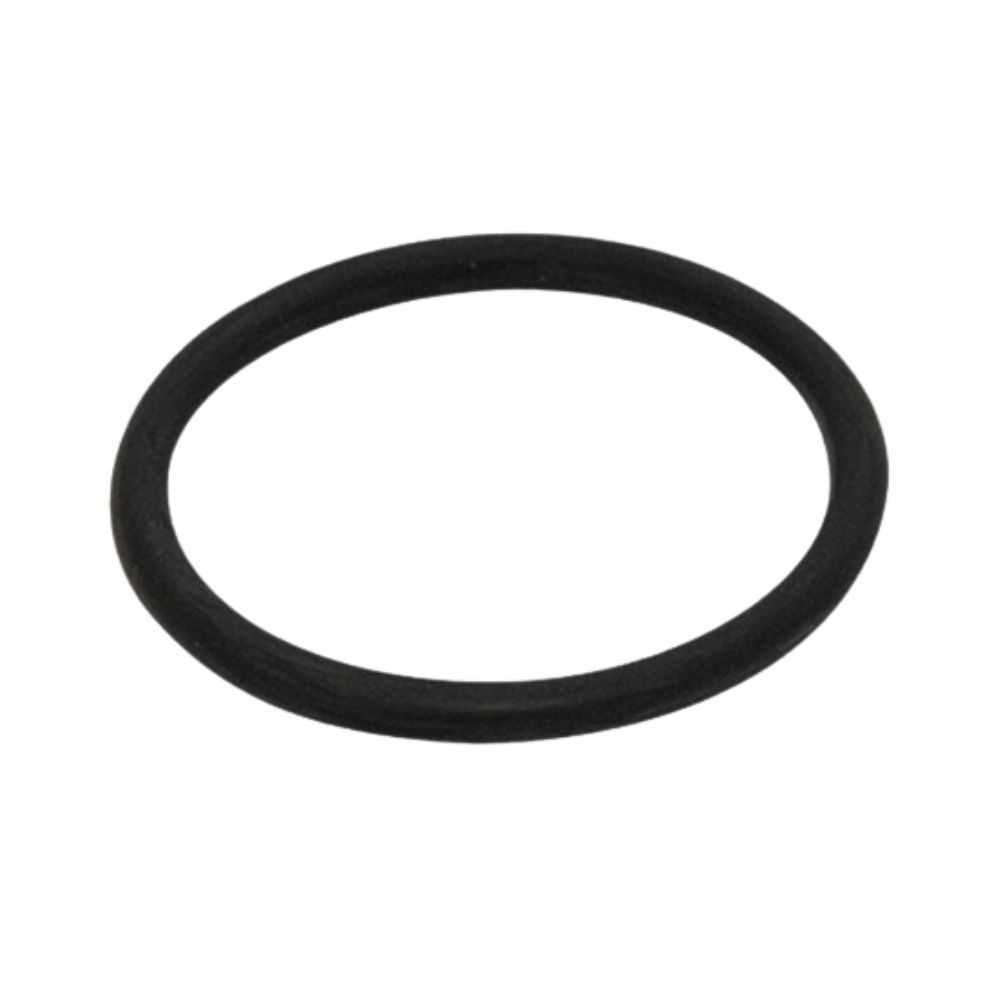

The EPDM union gasket in form A, series C has the same characteristics and is also ideal for environments with high requirements for cleaning and production safety. Like the series A type, it is made of black EPDM and is approved for food contact in accordance with both FDA/USP. Series C is designed for connection to DS/SMS dairy tubes and is used in particular in Scandinavian processing plants where this pipe standard is the norm – e.g. in Danish dairies, juice and brewery production.

Aseptic union gaskets do not work alone. They are part of a complete system of aseptic union parts, which also includes stainless steel union parts. We offer everything from adapters and weld liners to flange liners and nuts. They are all made of AISI 316L, which is known for its corrosion resistance and suitability for hygienic applications.

Our gaskets and union parts are designed to fit together across series, and we offer complete parts for quick and safe installation. This way, you can get a complete solution from a single supplier, which simplifies purchasing, documentation and maintenance.

If you need a tailor-made solution, our technical team is transparent in helping with customisations that match your production and internal standards. Call us on +45 7020 0422 or write to inquiry@alfotech.eu, and we will help you find the best solution.

Our range includes a variety of union gaskets for different standards. These are critical components that are practical to replace over time when they lose their tightness.

Watch the video to gain insight into why they are important components in the spare parts warehouse.

Aseptic union gaskets are used to ensure a tight, sterile and demountable connection between pipes and fittings in the food, beverage and pharmaceutical industries.

Through regular visual inspection, correct installation and replacement after a certain number of cleaning cycles – especially with frequent CIP/SIP cleaning.

We offer aseptic union gaskets in black EPDM, as this is the most commonly used type in the industry. Gaskets are also produced in FKM and PTFE.

The gaskets must match the specific series and size of the union parts. Please contact us to ensure correct compatibility.
