Aseptic union parts – the safe choice for hygienic connections

Safe operation in food and pharmaceutical production requires components that effectively eliminate the risk of bacterial growth. Aseptic union parts ensure a smooth and tight transition in your piping systems without the dreaded ‘dead pockets’. We provide solutions that combine high precision with the high documentation requirements, so that your production runs smoothly every day.

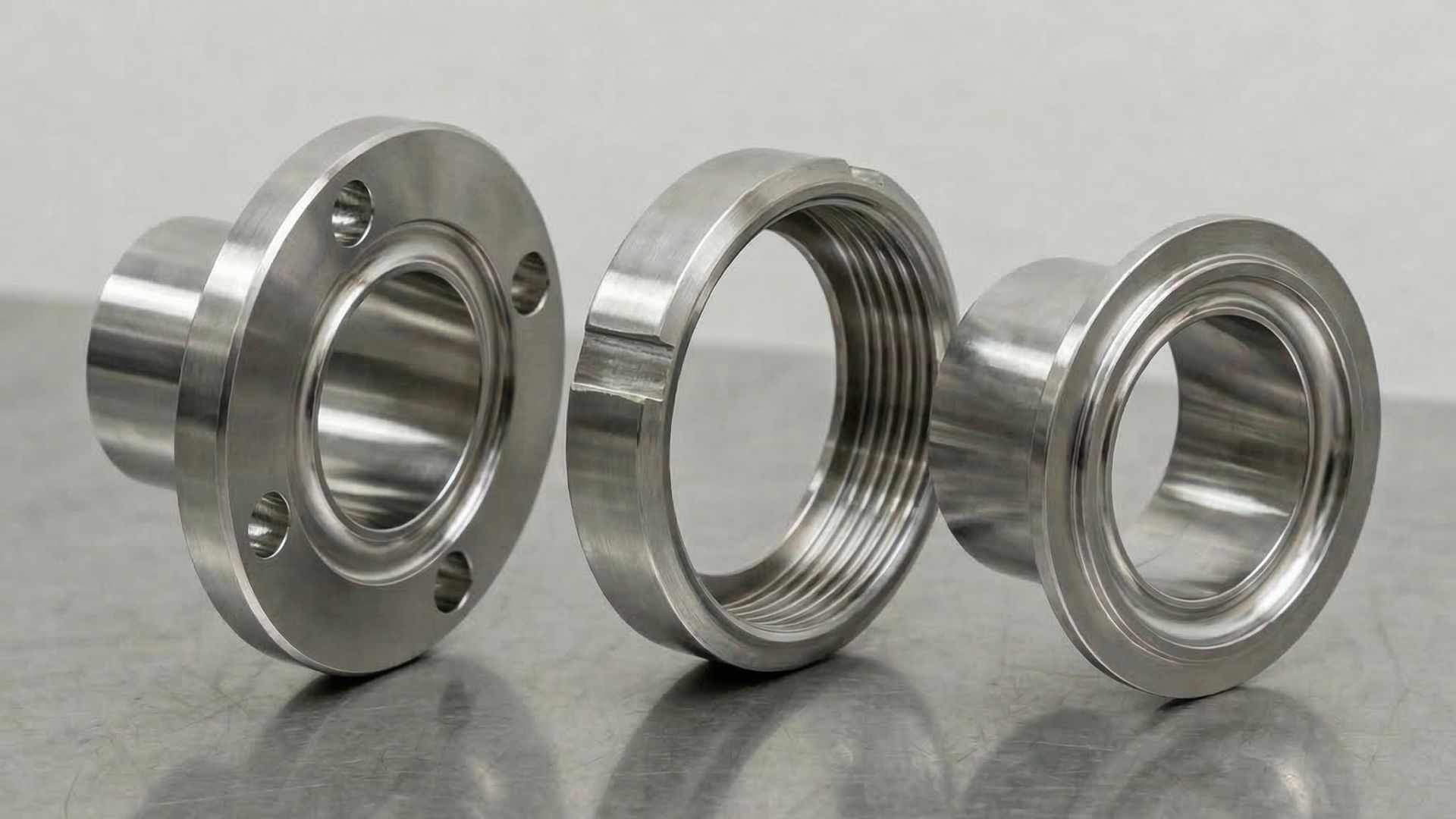

Aseptic union parts – also known as aseptic fittings – are specialised couplings for connecting pipes and equipment in sterile processes. Unlike other types of fittings, aseptic fittings are designed to create a completely smooth inner surface. This is the foundation for a sterile environment, as it prevents product residues from accumulating and forming a breeding ground for microorganisms. You will find these types of fittings in everything from the food and brewing sectors to the pharmaceutical industry, where flawless seals are vital to reducing the risk of cross-contamination.

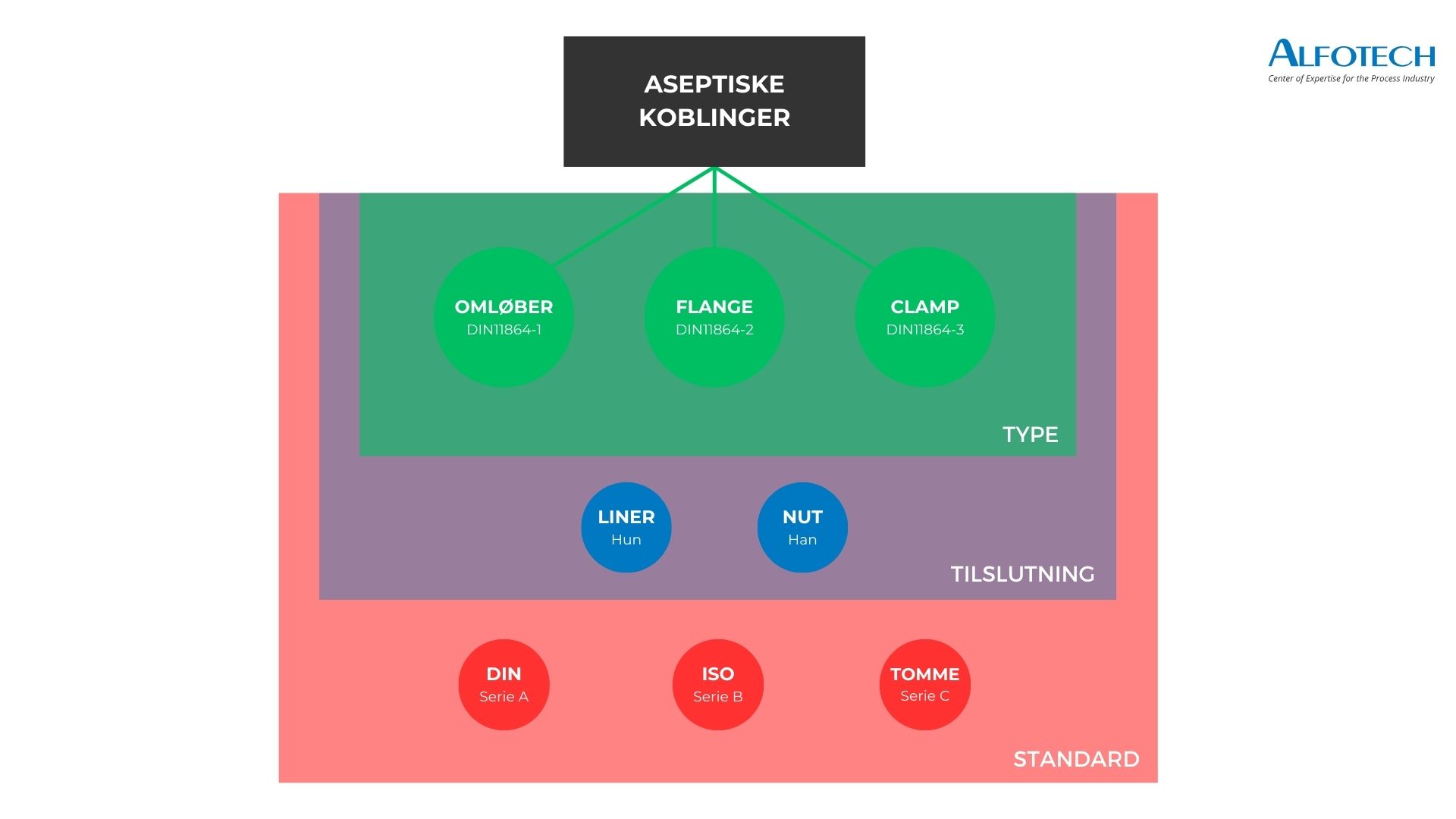

To achieve the optimal process solution, you must select the correct coupling type based on the structure of the plant and the physical loads. In the process industry, three different types are typically used:

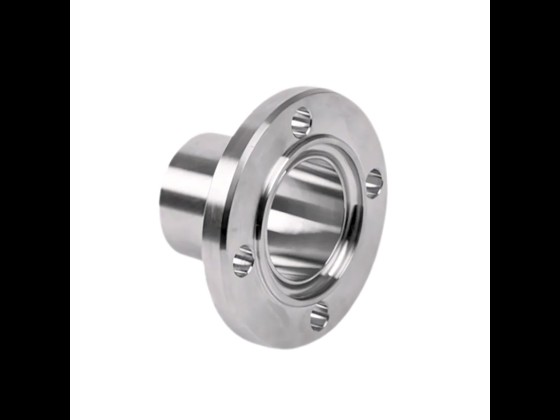

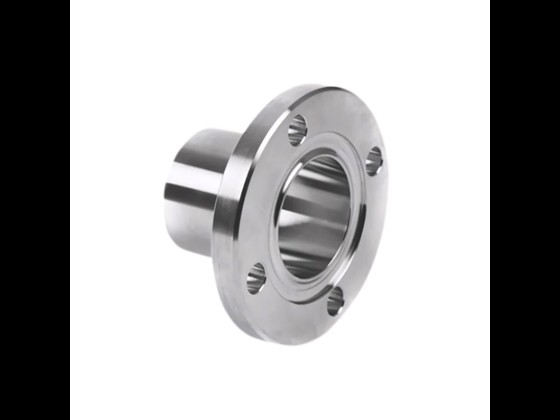

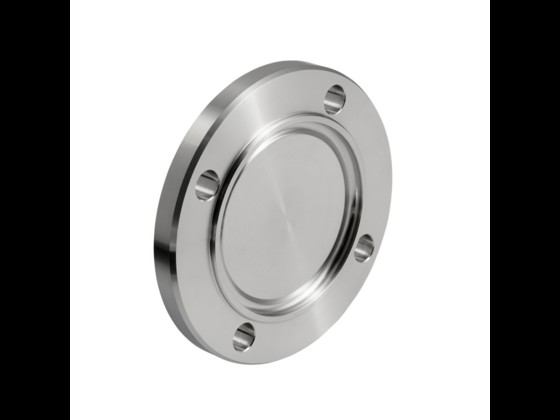

• Flanges (DIN 11864-2): If your production involves strong vibrations, high pressure or extreme temperature fluctuations, flanges are the safe choice. They are designed to maintain uncompromising tightness under the most demanding conditions.

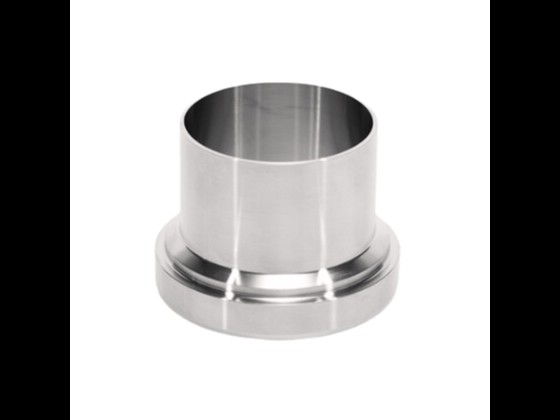

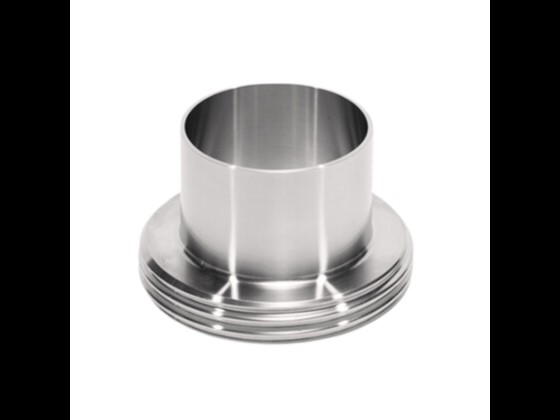

• Union couplings (DIN11864-1): This solution is often used for smaller installations where flexibility is a top priority. The system is known for its uncomplicated installation and maintenance, and with an integrated gasket, it creates a hermetic barrier that shields your media from external contamination.

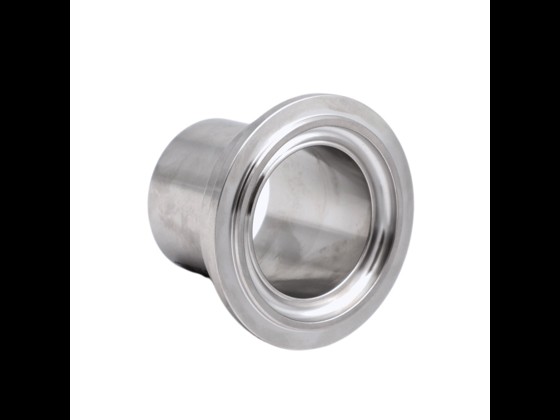

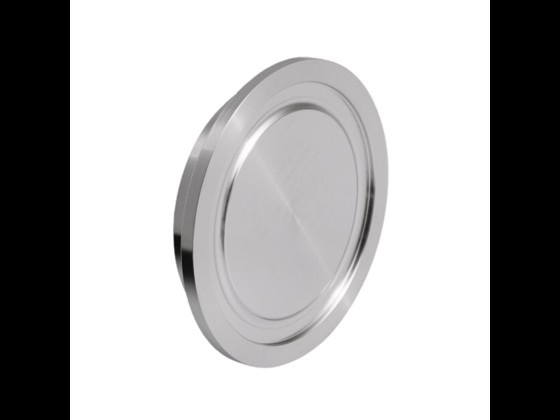

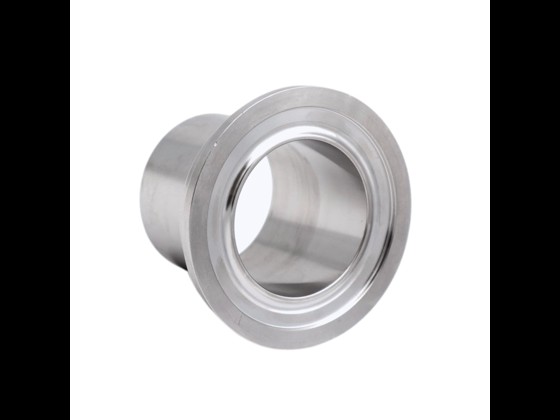

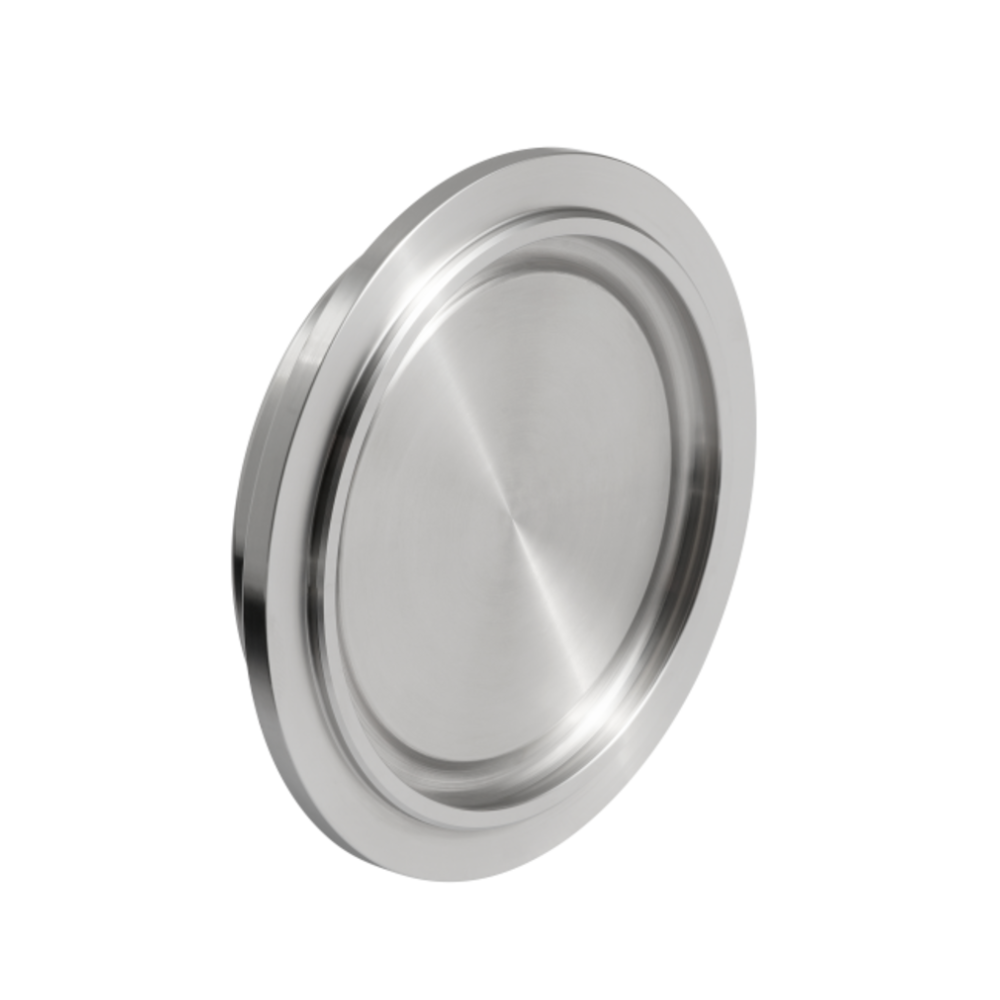

• Clamps (DIN 11864-3): In environments where frequent disconnection is required – such as in the medical industry – clamps are indispensable. They allow for quick adjustments and efficient cleaning without compromising sterility.

Once you have the coupling type in place, it is time to look at the different connections and standards. And this is often where confusion can arise. To understand how an aseptic assembly achieves its tightness, you need to be familiar with the individual components in the system:

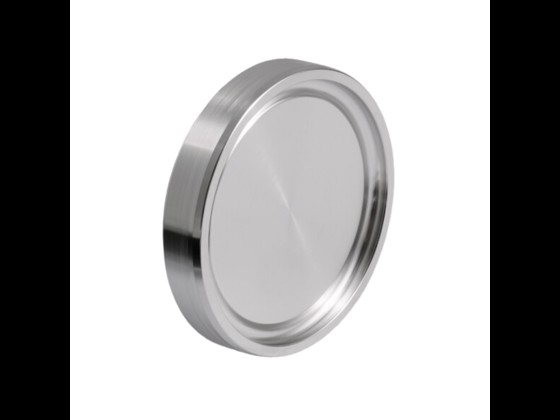

• Liner (female part): The part that is inserted into the assembly.
• Nut (male part): The opposing part that creates the connection.
• Complete solution: Together, the liner and nut form the entire connection between the process hose and the system.
• Hermetic seal: A built-in rubber gasket always ensures a completely tight connection that maintains the correct flow in the process plant.

Correct identification of the aseptic standards is fundamental to ensuring that your components are fully compatible and comply with international standards. The aseptic DIN standard is available in three different series, and it is critical that you choose the series that matches your existing pipes in the plant:

• Series A: Suitable for DIN dairy tubes.
• Series B: Suitable for ISO tubes.
• Series C: Suitable for DS/SMS or INCH dimensions.

Does it all sound a bit complex? Then you can take a look at this video, where we go in depth with all the basics about aseptic couplings that are worth knowing.

The material quality for aseptic fittings is, as a starting point, AISI 316L (EN 1.4404). This ensures that the components can withstand aggressive cleaning agents and the high temperatures to which the system is exposed on a daily basis. But the composition of the steel is only half the story. Surface roughness is at least as important.

A low Ra value means a smoother surface. Microorganisms and product residues find it difficult to adhere to a smooth structure. Aseptic fittings are typically supplied with a surface roughness of either Ra 0.8 µm or the even finer Ra 0.4 µm.

In practice, low surface roughness gives you three specific advantages:

1. Higher product safety: The risk of biofilm formation is significantly minimised.
2. Effective cleaning: CIP/SIP processes become more effective and can potentially be carried out faster, saving time.
3. Longer service life: Proper surface treatment combined with the right sealing materials extends the service life of the plant.

In a regulated industry, traceability is your most important asset. When you do business with us, the necessary documentation and certification are always included. This facilitates your audits and ensures that quality management is always at the forefront of legislation. We know that your time is precious and that unplanned downtime is expensive. That is why our specialists are ready to advise you on everything from material selection to optimising your spare parts inventory.

Would you like to hear more about how we can help you? Please contact us by telephone on +45 7020 0422 or by e-mail at inquiry@alfotech.eu.

Aseptic union parts are specially designed couplings that ensure a completely smooth and tight transition in the pipe system, preventing the formation of ‘dead pockets’ where product residues and bacteria can accumulate. They are essential in food, brewery and pharmaceutical plants as they contribute to a sterile environment, product safety and reduce the risk of contamination and downtime.

Aseptic union couplings (DIN 11864-1) are chosen for smaller or flexible installations with easy assembly and service. Flanges (DIN 11864-2) are used for high pressures, vibrations or temperature fluctuations for robust stability, while clamps (DIN 11864-3) are ideal for frequent disassembly in pharmaceutical applications.

The aseptic DIN standard is available in three series: Series A for DIN dairy tubes, Series B for ISO tubes and Series C for DS/SMS or INCH dimensions.

Surface roughness indicates how smooth the inner steel surface is, and low Ra values prevent microorganisms and product residues from adhering. Sanitary surfaces typically have an Ra of 0.8 µm or finer; many aseptic fittings are available in Ra 0.4 µm for high cleanability and hygiene.
