Connector, 90° elbow

Application:

Connector with 90° elbow for hydraulics and industry. Ideal for use in oil and gas platforms and in food and pharmaceutical production with high hygiene requirements. Designed to withstand both high operating pressures and powerful vibrations in heavy machinery and process lines.

Construction:

  • Internal and external BSPT thread.

Quality:

Made of AISI 316L/EN 1.4404 stainless steel.

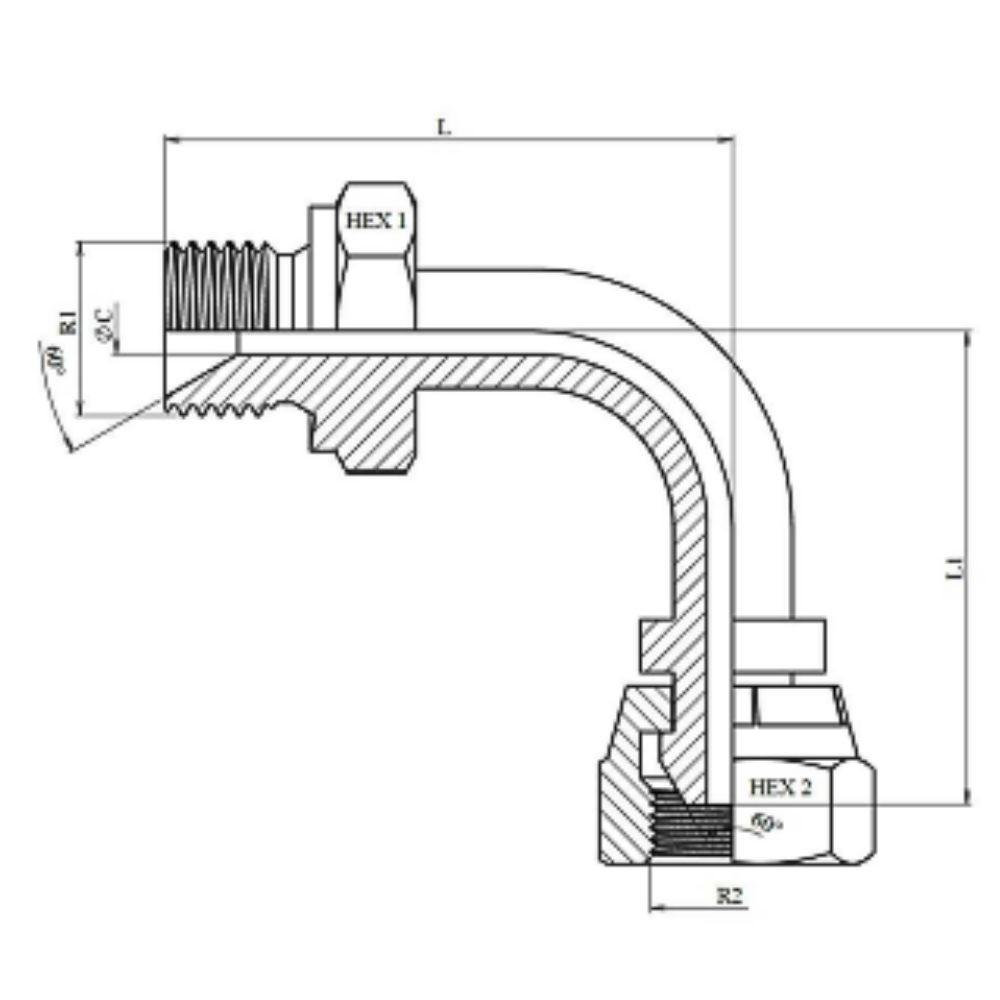

Item number Nominal dim.
inch 		Connection
RG 		C dia.
mm. 		Length L
mm. 		Length L1
mm. 		Key width HEX1
mm. 		Key width nut HEX2
mm 		Base unit Quantity
0492639060 1/4" 1/4" 4,0 43,0 36,0 19,0 19,0 PCS
0492639080 3/8" 3/8" 7,0 50,0 42,0 22,0 22,0 PCS
0492639100 1/2" 1/2" 9,5 60,0 51,0 27,0 27,0 PCS
0492639130 3/4" 3/4" 15,0 76,0 70,0 32,0 32,0 PCS
0492639150 1" 1" 19,0 93,0 71,0 41,0 41,0 PCS
0492639170 1 1/4" 1 1/4" 26,0 94,0 85,0 50,0 50,0 PCS
0492639190 1 1/2" 1 1/2" 32,0 114,0 106,0 55,0 55,0 PCS
0492639230 2" 2" 44,0 138,0 121,0 70,0 70,0 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
