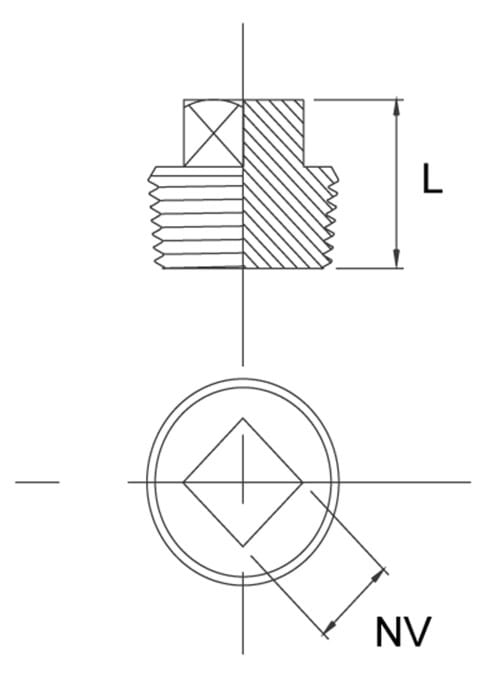

Plug, square

Made of stainless steel AISI 316.
Pressure stage 10 bar.

Download data sheet
Item number Nominal dim.
inch		 Length L
mm.		 Key width NV
mm.		 Net weight
kg.		 Quantity
0100269020 1/8" 18,0 6,0 0,010
0100269060 1/4" 20,0 8,0 0,015
0100269080 3/8" 20,0 10,0 0,020
0100269100 1/2" 26,0 14,0 0,035
0100269130 3/4" 28,0 16,0 0,046
0100269150 1" 33,0 19,0 0,080
0100269170 1 1/4" 38,0 22,0 0,110
0100269190 1 1/2" 38,0 25,0 0,155
0100269230 2" 44,0 29,0 0,230
0100269250 2 1/2" 39,0 0,360
0100269270 3" 51,0 44,0 0,520
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
