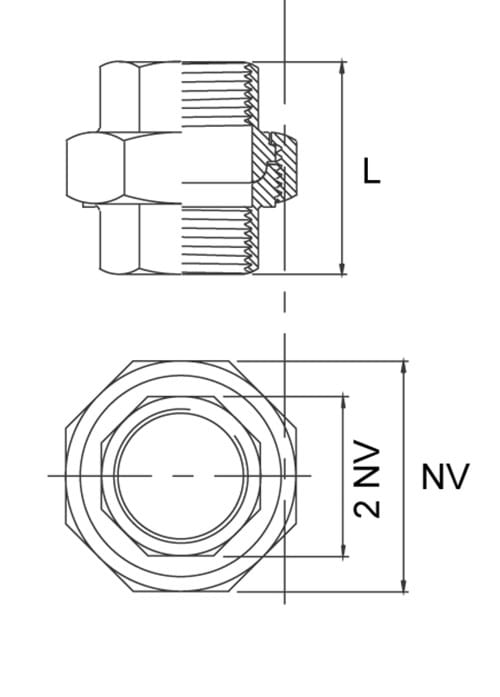

Union, female/female, conical

Made of stainless steel AISI 316.
Pressure stage 10 bar.

Download data sheet

Item number	Nominal dim. inch	Length L mm.	Key width NV mm.	Key width 2 nut mm	Net weight kg.
0100089020	1/8"	37,0	29,0	18,0	0,085
0100089060	1/4"	35,0	29,0	18,0	0,080
0100089080	3/8"	38,0	35,0	22,0	0,120
0100089100	1/2"	41,0	39,0	27,0	0,150
0100089130	3/4"	45,0	46,0	31,0	0,200
0100089150	1"	51,0	55,0	38,0	0,290
0100089170	1 1/4"	55,0	66,0	49,0	0,420
0100089190	1 1/2"	58,0	74,0	55,0	0,520
0100089230	2"	64,0	86,0	67,0	0,795
0100089250	2 1/2"	72,0	106,0	83,0	0,830
0100089270	3"	84,0	124,0	97,0	1,900

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
