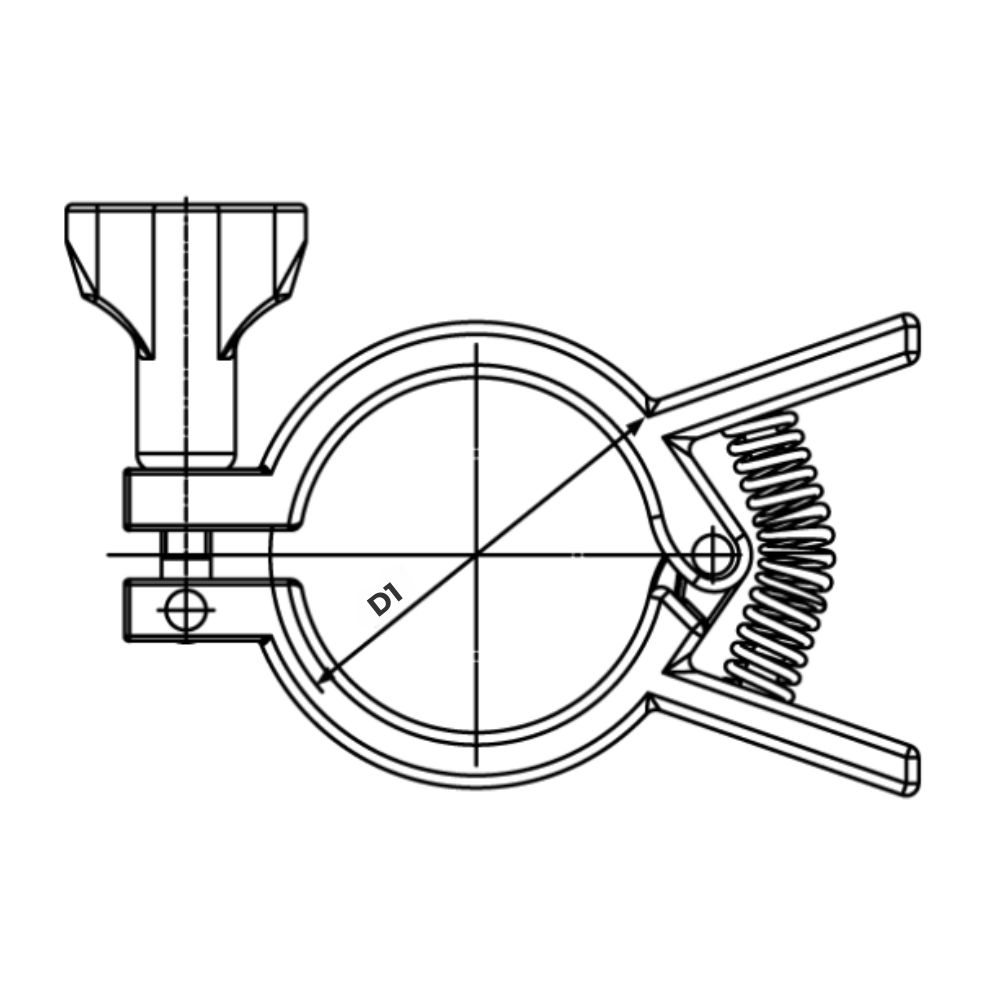

Clamp ring with spring

The clamp ring is hinged on one side with a thumbscrew on the opposite side, allowing secure closure. The spring mechanism provides additional tension for a tight fit and easy application.

Made of stainless steel AISI 304.

Item number	Nominal dim. mm.	Nom. dim. - DN	D1 dia. mm.	Weight/pcs. - kg.	Base unit
0101417190	6,0-19,0		25,0	0,270	PCS
0101417380	25,0-38,0	DN25-DN40	50,5	0,360	PCS
0101417510	51,0	DN50	64,0	0,430	PCS
0101417640	63,5		77,5	0,470	PCS
0101417760	76,1	DN65	91,0	0,490	PCS
0101417800		DN80	106,0	0,540	PCS
0101417990	101,6	DN100	119,0	0,620	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
