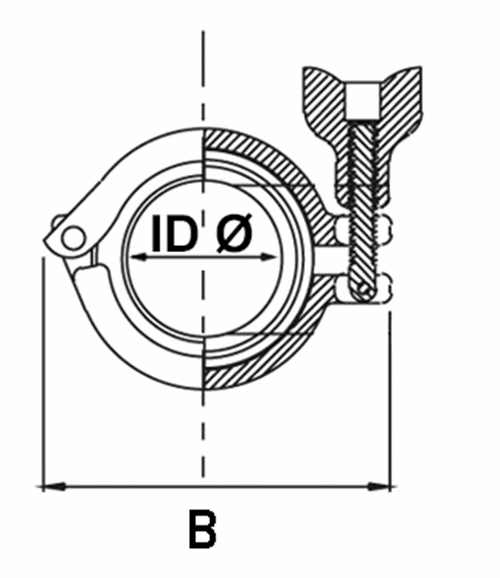

DIN Clamp ring, double hinged

Double-hinged.

Made of stainless steel AISI 304 / EN 1.4301.

Download data sheet
Item number Nominal dim.
mm.		 ID Ø dia.
mm.		 Length B
mm		 Net weight
kg.		 Quantity
0101411500 150,0 183,0 280,0 1,610
0101411501 150,0 167,0 262,0 1,380
0101412000 200,0 233,5 333,0 2,250
0101412001 200,0 217,4 325,0 2,110
0101412500 250,0 268,0 382,0 2,780
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
