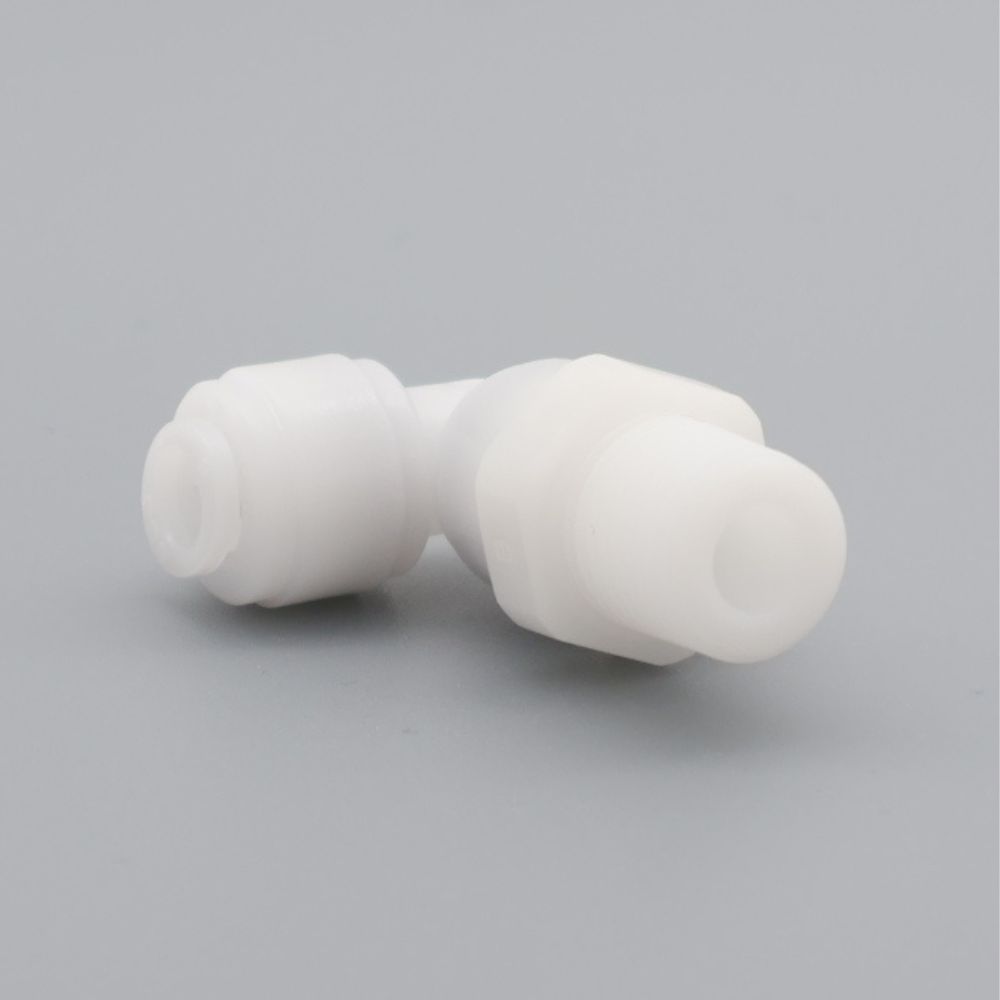

Push-in male swivel elbow

Application:

Push-in angle with swivel and BSPP thread suitable for compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

  • Made of POM
  • EPDM gasket

Standards:

EC 1935/2004.

Temperature:

The temperature ranges from +1°C to +98°C.
Working pressure 20 bar.

Download data sheet
Item number Nominal dim.
mm.		 Connection
RG		 OD Ø dia.
mm.		 Length B
mm		 Length L
mm.		 Installation dim. L1
mm.		 Thread length I
mm.		 Key width
mm.		 Net weight
kg.		 Base unit Quantity
02791HRPL0601W 6,0 1/8" 15,0 16,1 31,7 20,1 9,1 17,0 0,0072 PCS
02791HRPL0602W 6,0 1/4" 15,0 16,1 31,7 20,1 13,1 17,0 0,008 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
